Series 47K Gas Detector [SIL 2] 25
6.5. Pipe Mounting Kit
Note: The pipe mounting kit (P/N 10 113032) is not included in the
EC-Type Examination Certificates DMT 01 ATEX G 001 X,
BVS 03 ATEX G 010 X and DMT 03 ATEX G 003 X
6.5.1 Mounting Kit for Pipes with a Diameter of up to 50 mm
The S 47K-PRP can be mounted vertically by fastening its legs by means of three
screws. Additionally, a pipe mount kit allowing the detector to be fixed to pipes or
poles is available as an accessory.The kit consists of:
 one universal mounting plate,
 one retaining plate for pipes with a diameter of 20–30 mm,
 one retaining plate for pipes with a diameter of 30–50 mm,
 two tightening straps for pipes with a diameter of 50–150 mm.

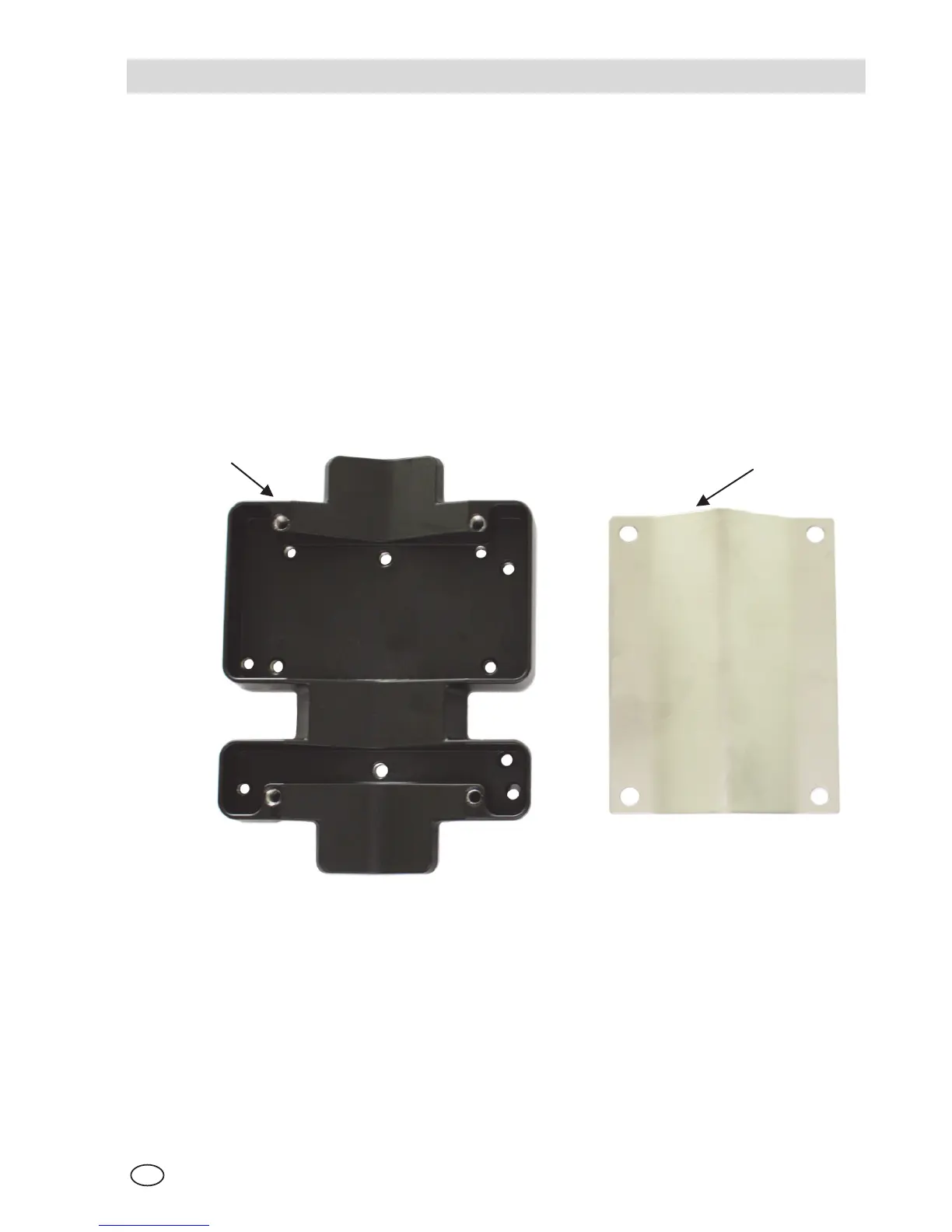

1 Mounting plate 2 Pipe clamp
1 2
