Appendix
Control Unit Models 9010 LCD and 9020 LCD
75
GB
9010/20 LCD Sensor data sheet Ultima XE [2-wire]
Part No.: 10044xxx
xxx as per ordering

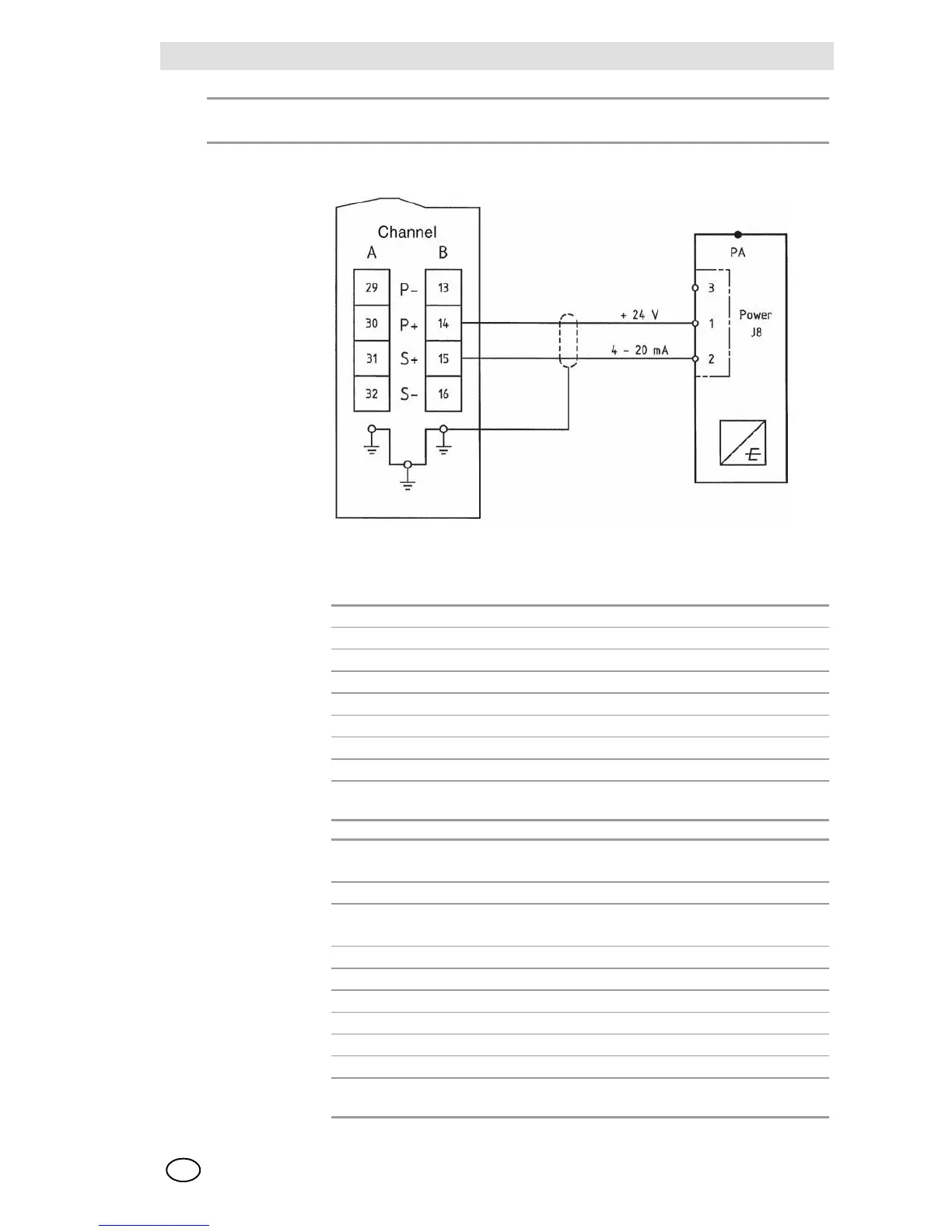

Terminal Block
9010/9020
Ultima X
[2-wire]
Caution: Before connecting the measuring head, check hardware and software
settings.
Sensor type: EC/active/2-wire/4–20 mA linear/current sink [2 wire active]
Connection data: Supply voltage: 12 – 30 V DC
Power requirement: Upto 1 W [excluding cable length]
Connection cable: 2-lead, 80% shielded
Maximum resistance: 600 Ohm at 24 V DC
Maximum cable length: 1.200 m [with 1.5 mm
2
lead cross-section]
Cable diameter: 8 – 12 mm
Permitted lead cross-section: 0.75 – 2.5 mm
2
Cable entry: Possible on both sides/M20 x 1,5 or 3/4“ NPT
For use in Ex-area: Approved cable entries and blind plugs re-
quired EEx d IIC, M25
Conditions for
use:
Assembly: Wall-mounted/assembly clip
Sensor can be remote sensor
Protection: IP 66/IP 67 EN 60529
Approvals: DMT 02 ATEX E 202 X / Ex II 2G EEx d IIC T4
-40 °C < Ta +60 °C/+45 °C
Temperature: -40 °C to +60 °C type-specific
Humidity: 15 – 95 % relative humidity; non-condensing
Pressure: 950 – 1,100 hPa
Weight: approx. 4.7 kg
Dimensions W x D x H: 160.3 x 99.3 x 261.1 mm
Housing material: Stainless steel [ASMT 316/DIN 1.4401]
For further details see the Operating and Maintenance Instructions.
Part No.: 10046690
