Control Unit Models 9010 LCD and 9020 LCD
76
Appendix
MSA
GB

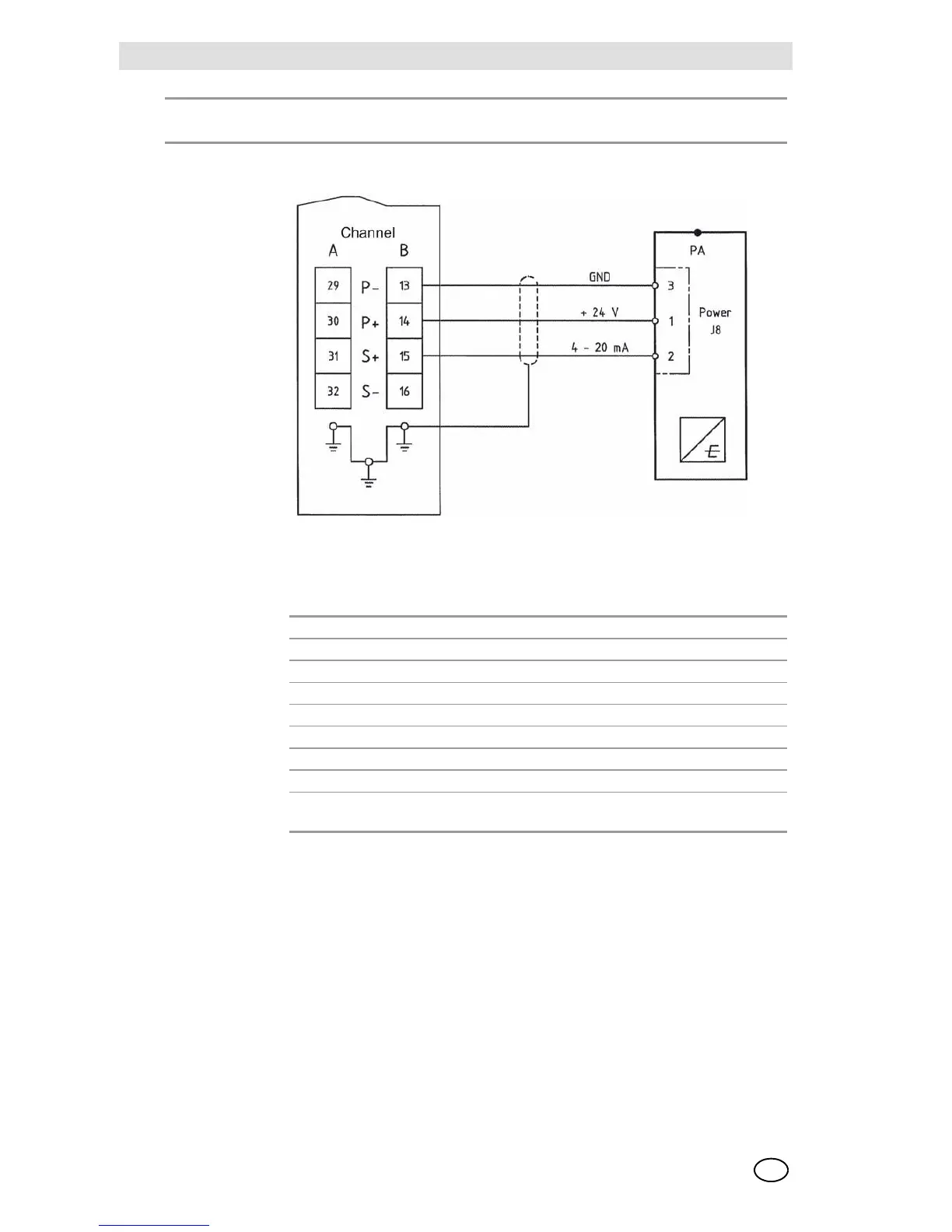

9010/20 LCD Sensor data sheet Ultima XE [3-wire]
Part No.: 10044xxx
xxx as per ordering information
Terminal Block
9010/9020
Ultima X
[3-wire]
Caution: Before connecting the measuring head, check hardware and software
settings.
Sensor type: EEC, Catalytic or IR/active/3-wire/4–20 mA linear/current source
[3 wire active]
Connection data: Supply voltage: 12 – 30 V DC
Power requirement: Up to 5 W [excluding cable length]
Connection cable: 3-lead, 80 % shielded
Maximum resistance: 600 Ohm at 24 V DC
Maximum cable length: 1.000 m [with 1.5 mm
2
lead cross-section]
Cable diameter: 8 – 12 mm
Permitted lead cross-section: 0.75 – 2.5 mm
2
Cable entry: Possible on both sides/M20 oder 3/4“ NPT
For use in Ex-area: Approved cable entries and blind plugs re-
quired EEx d IIC, M25
