Fire-fighting Helmets / Preventive care, control
and maintenance
Step 3
Step 4 (inside view)
Inner shell assembly
References GA1003J – F1SF Inner shell
GA1463 – Chinstrap supports (L+R)
GA1009R – Chinstrap F1SF (3 points)
GA1074 – Chinstrap and neck curtain fixture

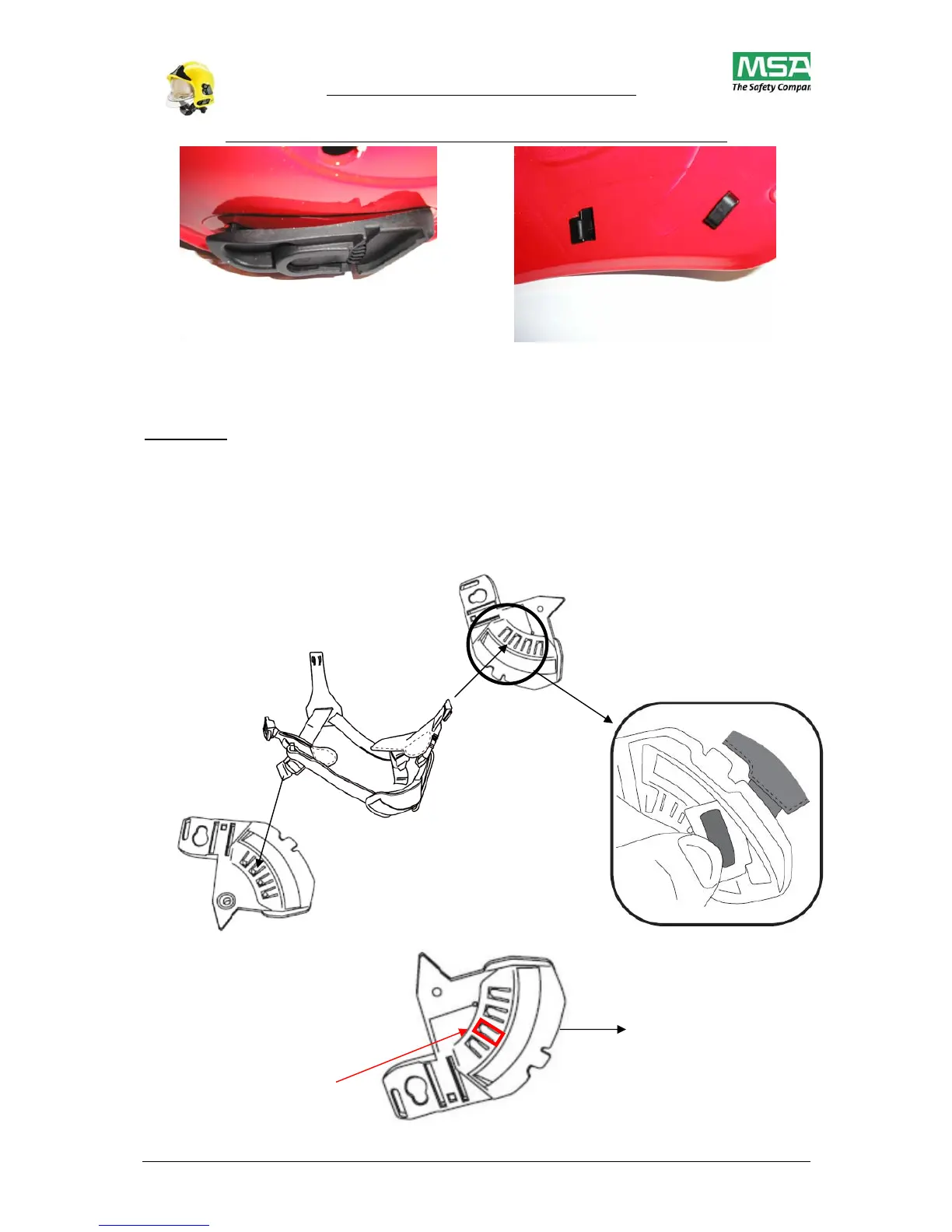

1. Position the inner shell in the kit fix axles that show inside the helmet shell
2. Position the chinstrap attachment points (L and R) inside the chinstrap supports (1-right
and 2-Left) in the position #2 front the lower edge.
Version 7a/ May 2010 Page 28/36
Positionning the Chinstrap
in the support parts
Adjustment of the angular position of the chinstrap
1
2
Position #2
(from below)
To Next Page
