Fire-fighting Helmets / Preventive care, control
and maintenance
Version 7a/ May 2010 Page 32/36

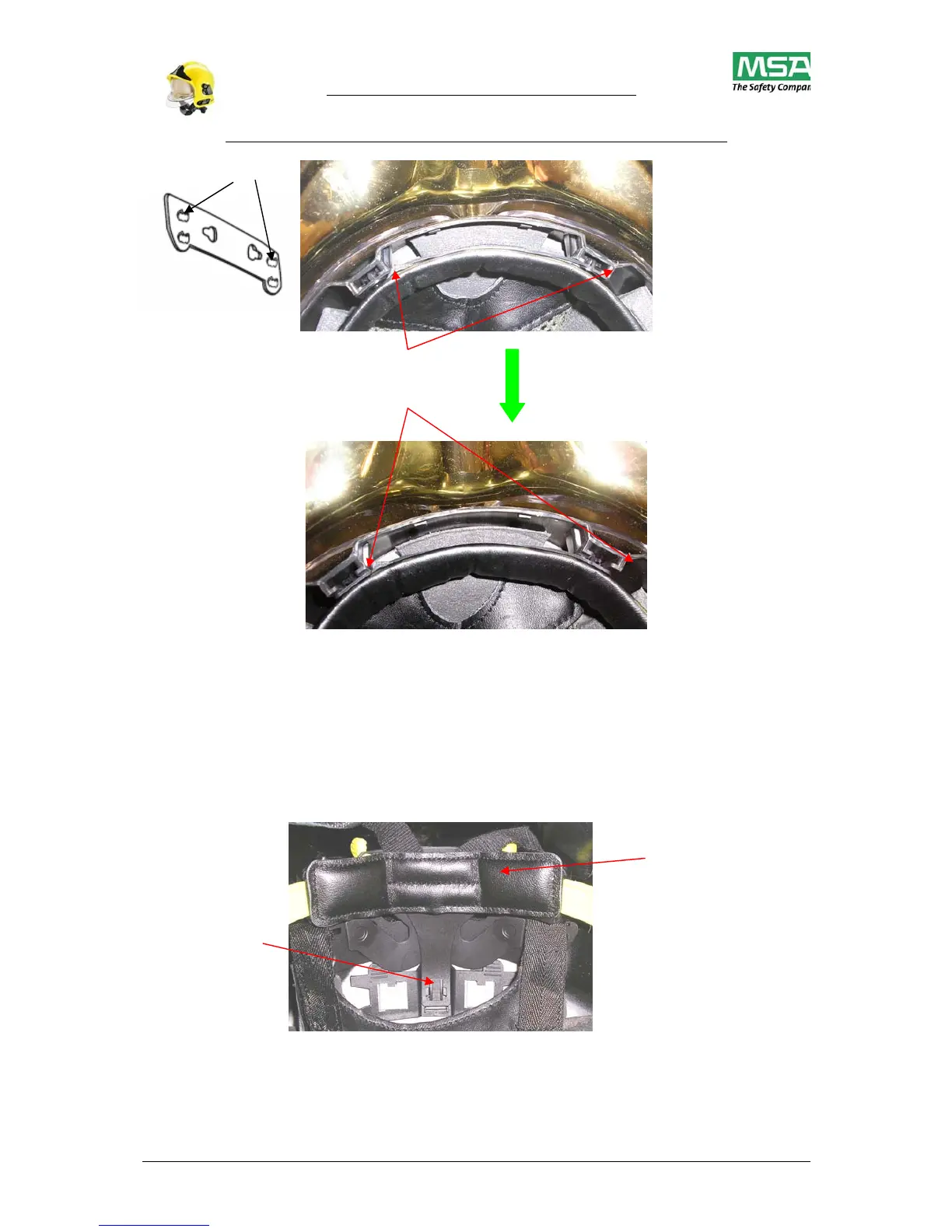

Insert the 2 external clips and the 2 centering pins of the rear interface in the 4 slots in the
shell (rear side). Make sure the centering pins are behind the and the unlocking buttons are
in front.
Insert the chinstrap rear interface in the chinstrap / neck curtain fixture (insert
and pull to lock) and position the neck pad in front of the interface attaching it
to the cradle with the velcro straps.
Clips to insert
Slide the clips to the
bottom of the slots
Neck pad
Chinstrap rear
interface
