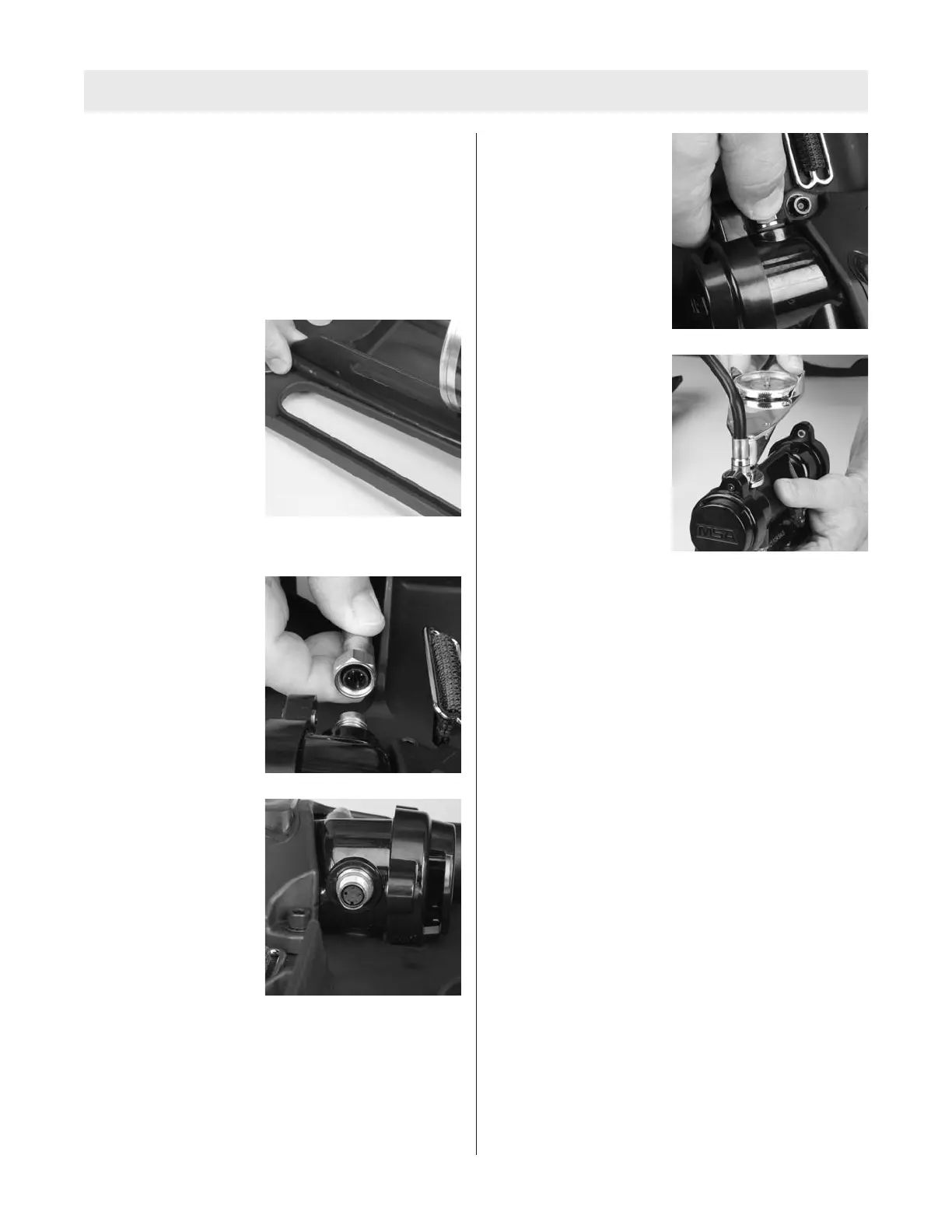

4. Connect the high pressure hose to the Control Module.
Note: If equipped with a Quick-Fill system, connect the
h
igh pressure hose to the Quick-Fill manifold.
a. Use a torque wrench and 9/16” crow foot to tighten
the connector to 100-125 in lbs.
5. Turn the jam nut counterclockwise until it butts against
t
he connector.
6. Use a 5/8” crow foot to tighten the jam nut to 225-250
in. lbs.
7. Route the power and
data cable through the
channel on the carrier.
(This cable will be
retained later when the
first stage regulator is
installed).
Connect the Power and Data Cable
1. Carefully align the
keyed connection.
2. Hand tighten the con-
nector until the o-ring is
no longer visible.
3. Use a torque wrench
and 5/8” crow foot to
tighten the connector to
6-8 in lbs.
Note: The control module executes a start up sequence
when it receives power. Double-press the reset button to
enter sleep mode.
