8.2 HUD Alarm Status
The status LEDs let the user know about primary and secondary alarms on the SCBA. These status
LEDs use the following three icons:
• Battery icon
• Running man icon
• Caution triangle

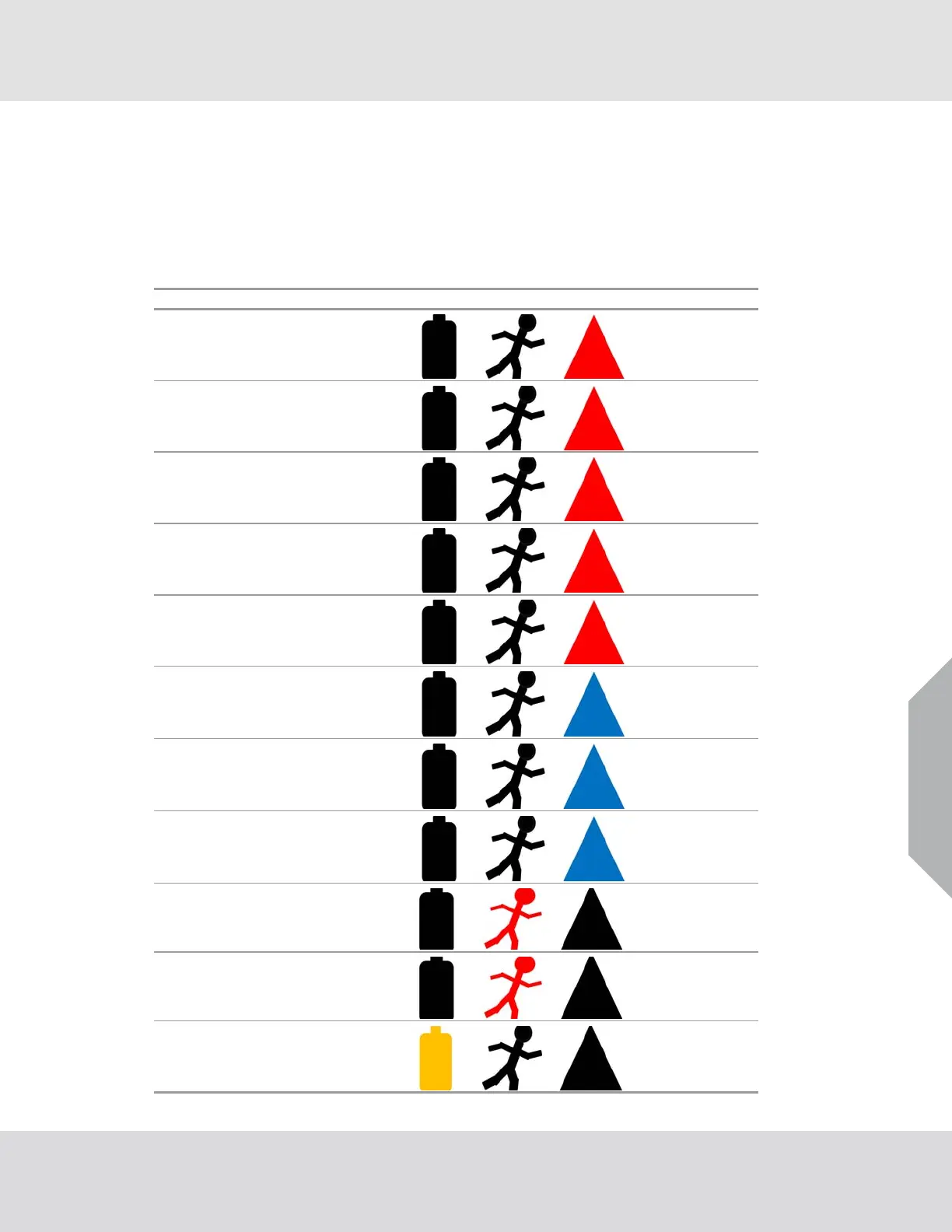

Alarm Illuminated Icon Icon Shown
PASS Pre-Alarm Red flashing*
PASS Full Alarm Red solid
PASS Manual Alarm Red solid
Electronics Failure Red flashing*
Primary Thermal Alarm (optional) Red flashing*
Secondary Thermal Alarm (optional) Blue flashing*
LCD Thermal Alarm Blue flashing*
Pressure Drop Alarm (optional) Blue flashing*
Evacuate (if equipped) Red flashing*
Evacuate confirmed (if equipped) Red solid*
Low Battery Alarm Yellow flashing*
* Look at the control module display to see more information.
