After Use

G1 Integrated SCBA System

10 After Use

10.1 Removing the SCBA

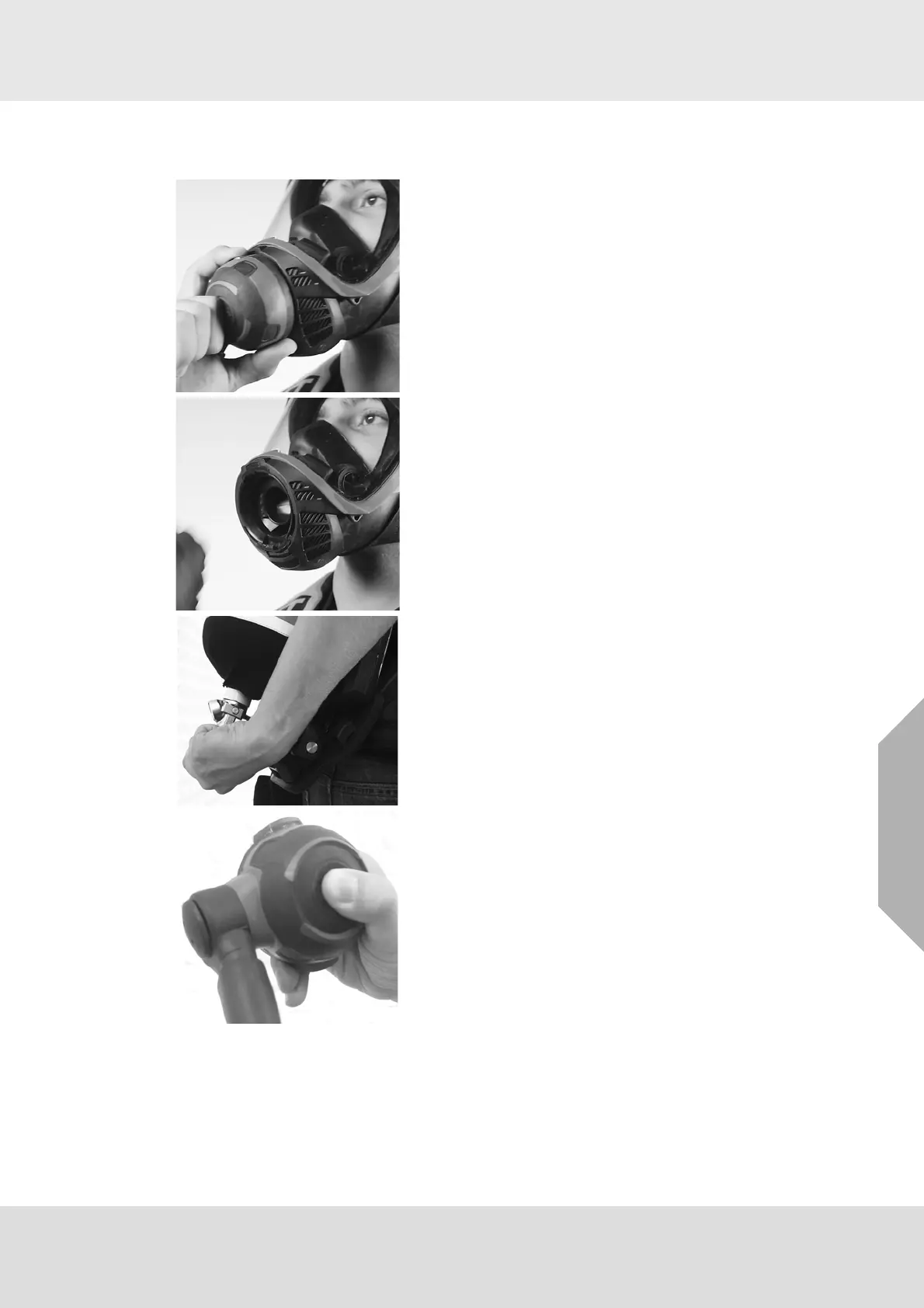

(1) Grasp the LGDV buttons.

(2) Push the release buttons and pull the LGDV out of full

face mask.

(3) Close the cylinder valve fully.

(4) Press the purge button to release system pressure.
