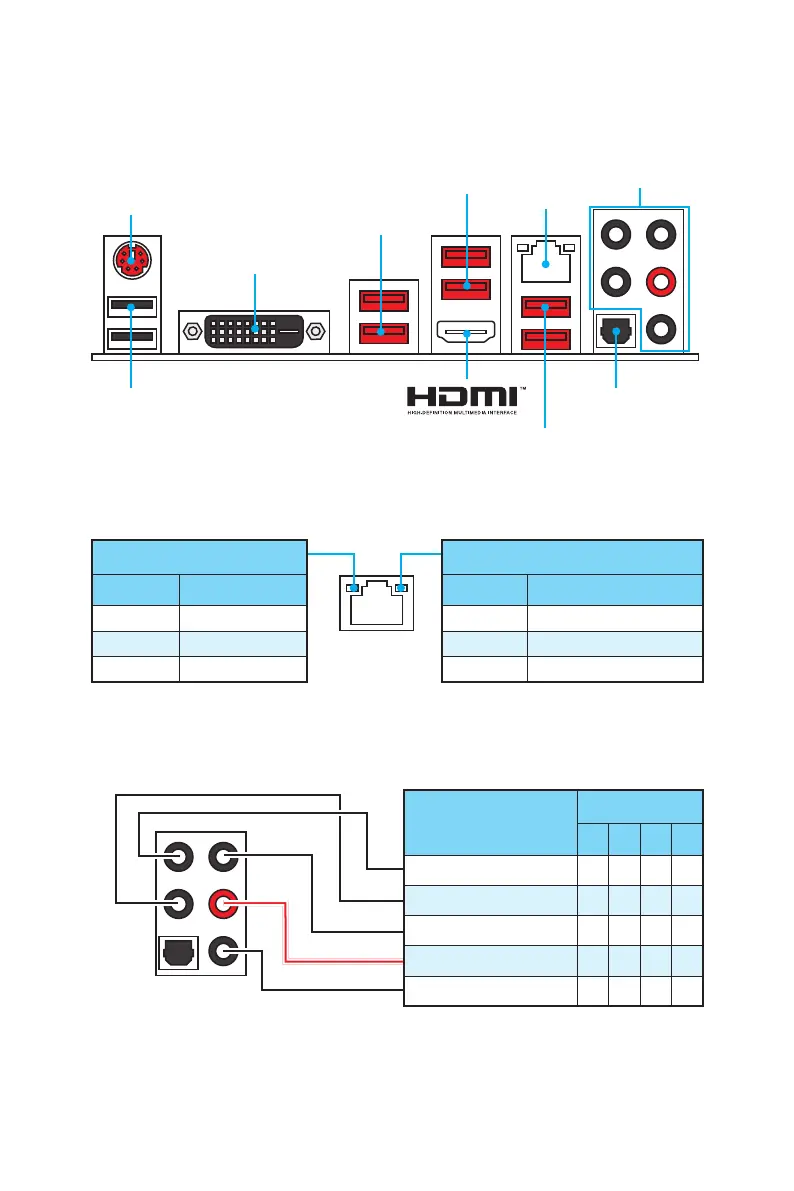

Rear I/O Panel
DVI-D
Rear I/O Panel
PS/2
LAN
USB 3.1 Gen2
USB 3.1 Gen1
USB 3.1 Gen1
Audio Ports
USB 2.0
Optical S/PDIF-Out
Link/ Activity LED
Status Description
Off No link
Yellow Linked
Blinking Data activity
Speed LED
Status Description
Off 10 Mbps connection
Green 100 Mbps connection
Orange 1 Gbps connection
LAN Port LED Status Table
Audio Ports Configuration
Audio Ports
2 4 6 8
Rear Speaker Out
Line-In/ Side Speaker Out
Line-Out/ Front Speaker Out
Mic In
Blank
To Next Page
