Overview of Components
DIMM Slots
DIMM1 DIMM3
Channel A Channel B
DIMM2 DIMM4

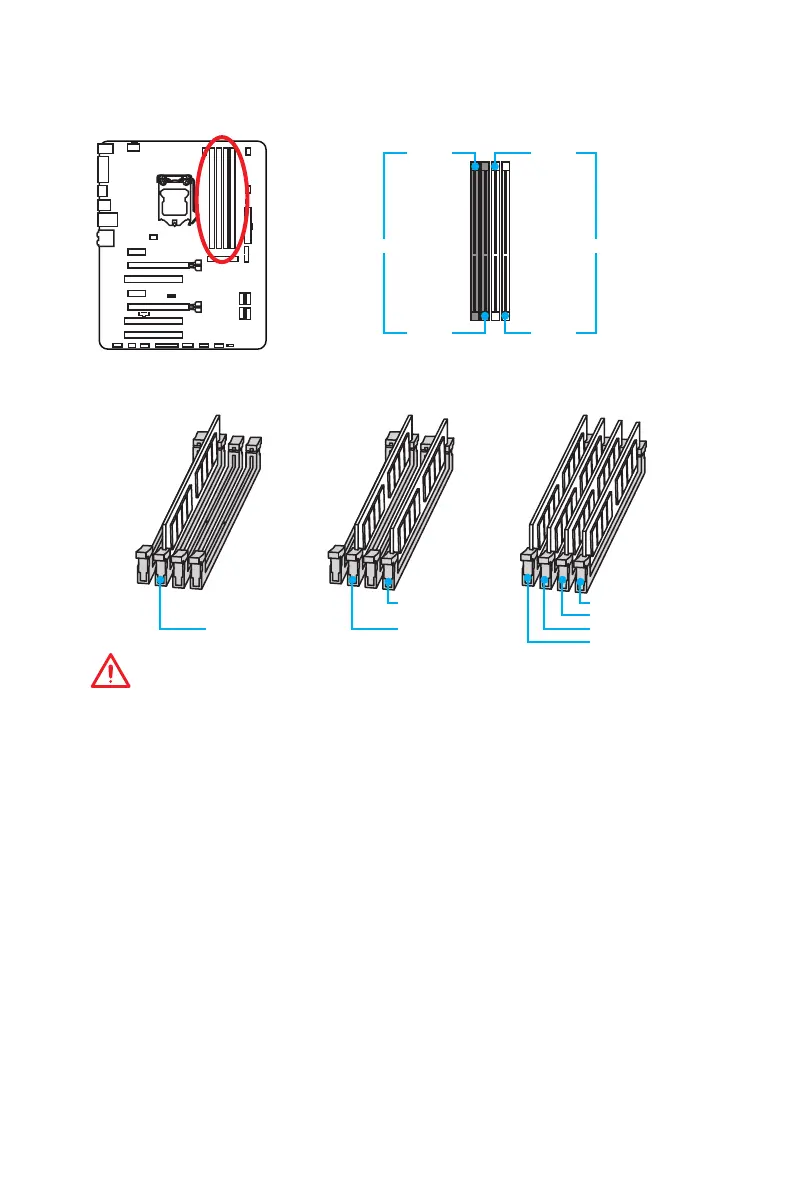

Memory module installation recommendation
DIMM4 DIMM4
DIMM3
DIMM2 DIMM2 DIMM2
DIMM1
Important
Always insert memory modules in the DIMM2 slot first.
than the amount of installed.
Please note that the maximum capacity of addressable memory is 4GB or less
recommended that you to install 64-bit Windows OS if you want to install more than
4GB memory on the motherboard.
It is recommended to use a more efficient memory cooling system for full DIMMs
installation or overclocking.
and devices when overclocking.
