Overview of Components

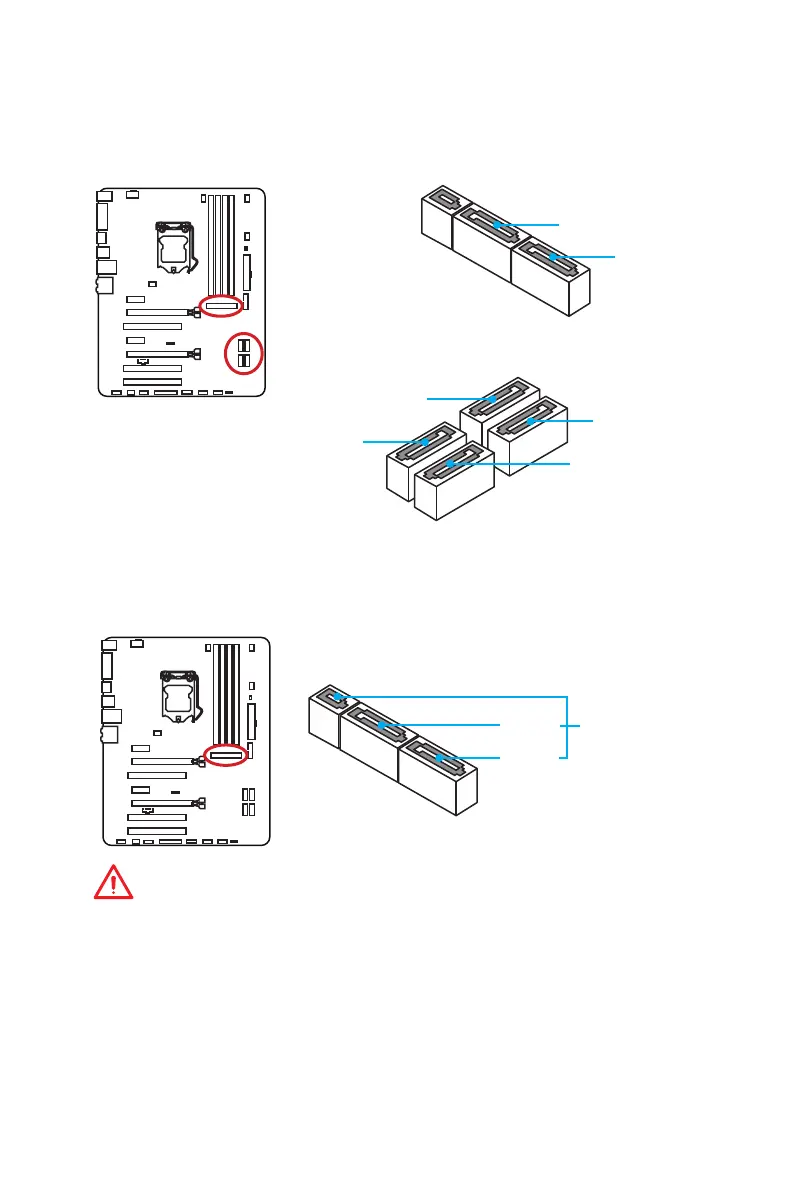

SE1_21: SATAe Connector
used with a single SATAe device or two legacy SATA devices.
SATA1
SATA2
SATAe1
Important
Please do not fold the SATA or SATAe cable at a 90-degree angle. Data loss may
result during transmission otherwise.
it is recommended that the flat connector be connected to the motherboard for
space saving purposes.
SATA5
SATA3
SATA2
SATA6
SATA4
SATA1
SATA1~6: SATA 6Gb/s Connectors
These connectors are SATA 6Gb/s interface ports. Each connector can connect to
one SATA device.
To Next Page
