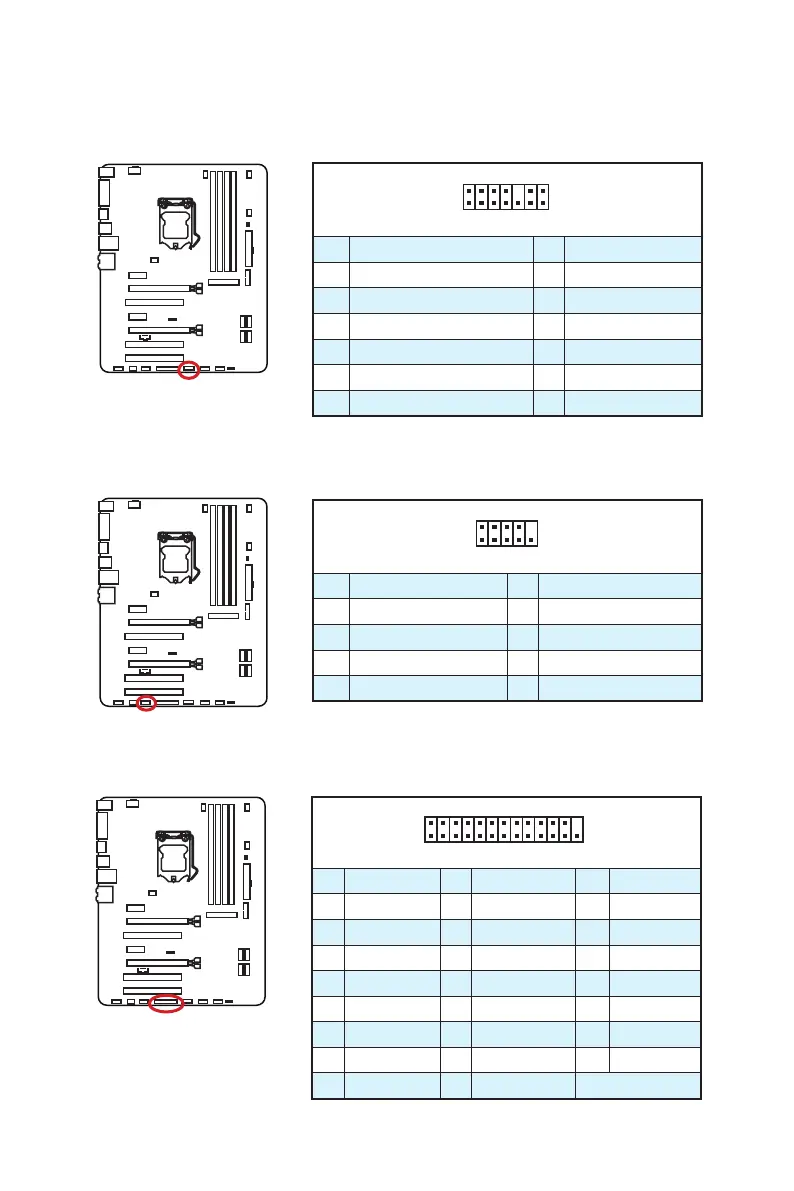

Overview of Components
1
2 14
13
1 2 3V Standby power
3 4 3.3V Power
5 6 Serial IRQ
7 8 5V Power
9 10 No Pin
11 12 Ground
13 14 Ground
1
2 10
9
1 2 SIN
3 SOUT 4 DTR
5 Ground 6 DSR
7 RTS 8
9 RI 10 No Pin
JTPM1: TPM Module Connector
platform manual for more details and usages.
JCOM1: Serial Port Connector
This connector allows you to connect the optional serial port with bracket.
1
2 26
25
1 RSTB# 2 AFD# 3 PRND0
4 ERR# 5 PRND1 6 PINIT#
7 PRND2 8 LPT_SLIN# 9 PRND3
10 Ground 11 PRND4 12 Ground
13 PRND5 14 Ground 15 PRND6
16 Ground 17 PRND7 18 Ground
19 20 Ground 21 BUSY
22 Ground 23 PE 24 Ground
25 26 No Pin
JLPT1: Parallel Port Connector
This connector allows you to connect the optional parallel port with bracket.
