Overview of Components

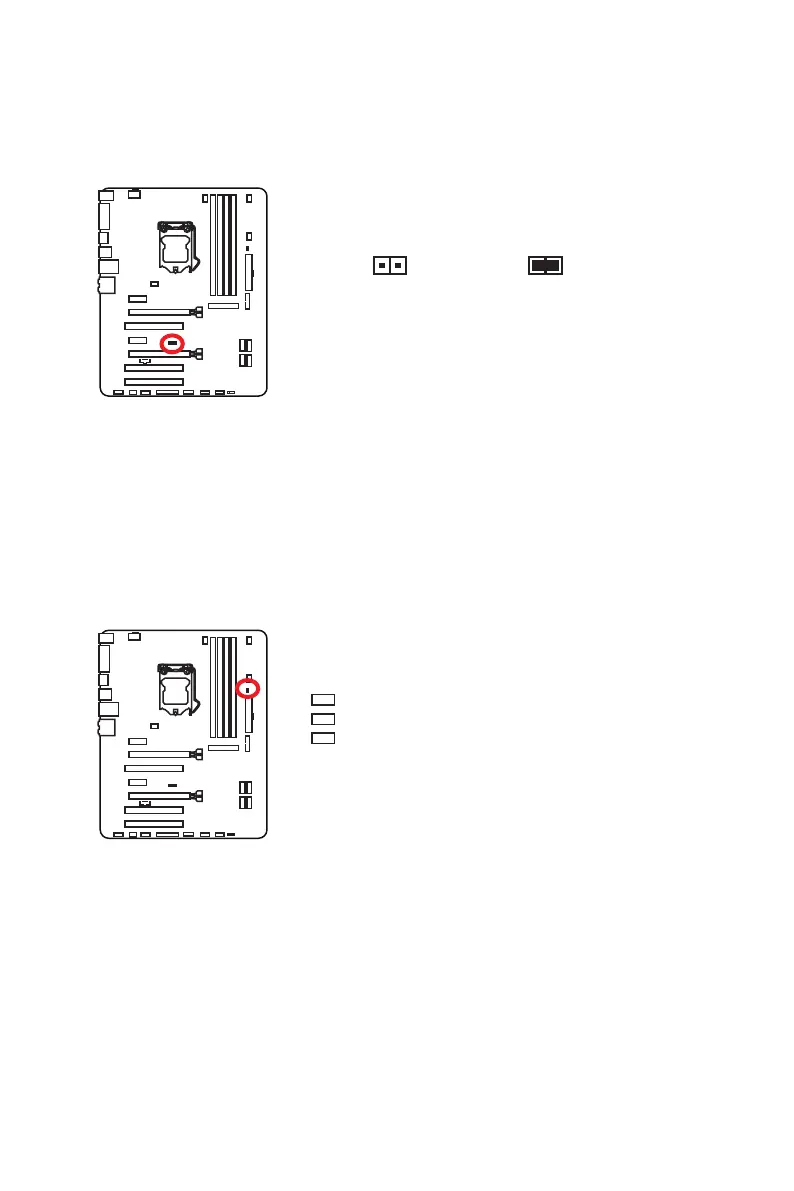

JBAT1: Clear CMOS (Reset BIOS) Jumper
the motherboard to save system configuration data. If you want to clear the system
Keep Data
Reset BIOS
Resetting BIOS to default values
1. Power off the computer and unplug the power cord
2. Use a jumper cap to short JBAT1 for about 5-10 seconds.
3. Remove the jumper cap from JBAT1.
4. Plug the power cord and power on the computer.
EZ Debug LED: Debug LED indicators
These LEDs indicate the status of the motherboard.
CPU
DRAM - indicates DRAM is not detected or fail.
VGA - indicates GPU is not detected or fail.
