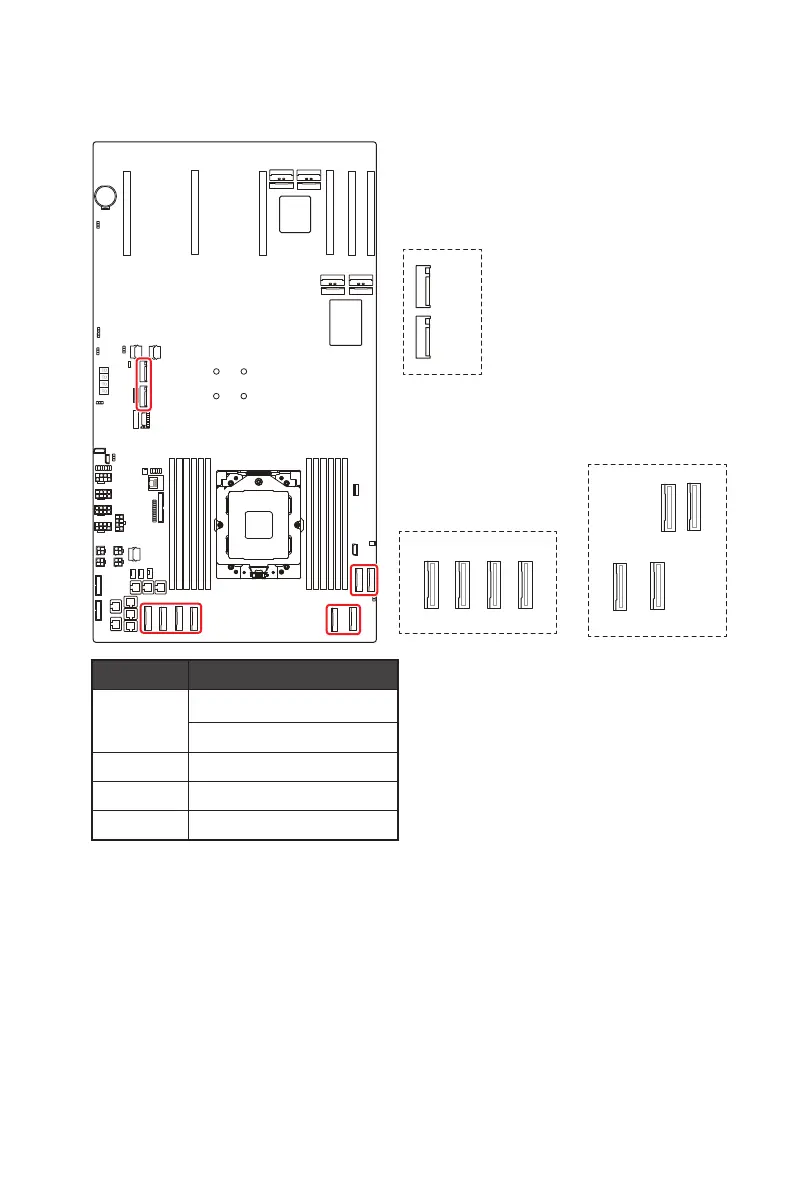

Storage Connectors
Storage Connectors
Name Description
JMCIO1~2
PCIe 5.0 x8, 32GT/s (default)
SATA 3.0, 6Gb/s
JMCIO3~8 PCIe 5.0 x8, 32GT/s
M2_1 PCIe 3.0 x4, 8GT/s
M2_2 PCIe 3.0 x2, 8GT/s
JMCIO8
JMCIO2
JMCIO1
JMCIO4
JMCIO3
JMCIO5
JMCIO6
JMCIO7
M2_2
M2_1
