Cooling Connectors
Cooling Connectors

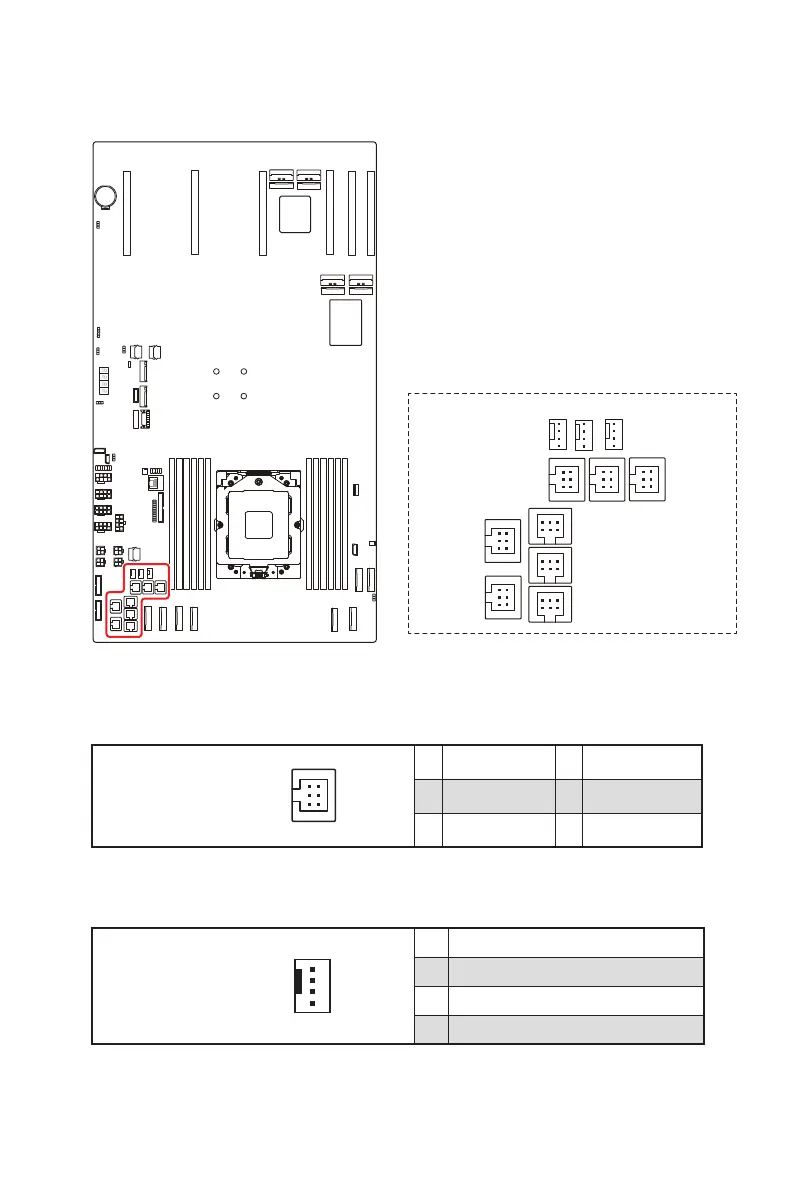

SYS_FAN1~8: System/CPU Fan Connectors
The fan connectors support system/ CPU cooling fans.
SYS_FAN1~8
1 2
65
1 FAN_TACH 2 P12V
3 PWM 4 P12V
5 GND 6 GND
CPU_FAN1~2: CPU Pump Connectors
The fan connectors support CPU cooling pump.
1
4
CPUFAN1~2
1 GND
2
P12V
3
FAN_TACH
4
BMC_PWM
SYS_FAN1
SYS_FAN2
SYS_FAN3
SYS_FAN4
SYS_FAN5
SYS_FAN7
SYS_FAN8
SYS_FAN6
CPU_FAN2
CPU_FAN1
WATER_LEAKING1
