MSI G4101 - Power Connectors; JPWR_MB1~4: 8-Pin 12 V Power Connectors (for MB PWR); JPWR_MB5: 8-Pin 12 V Power Connector (for BP PWR)

24

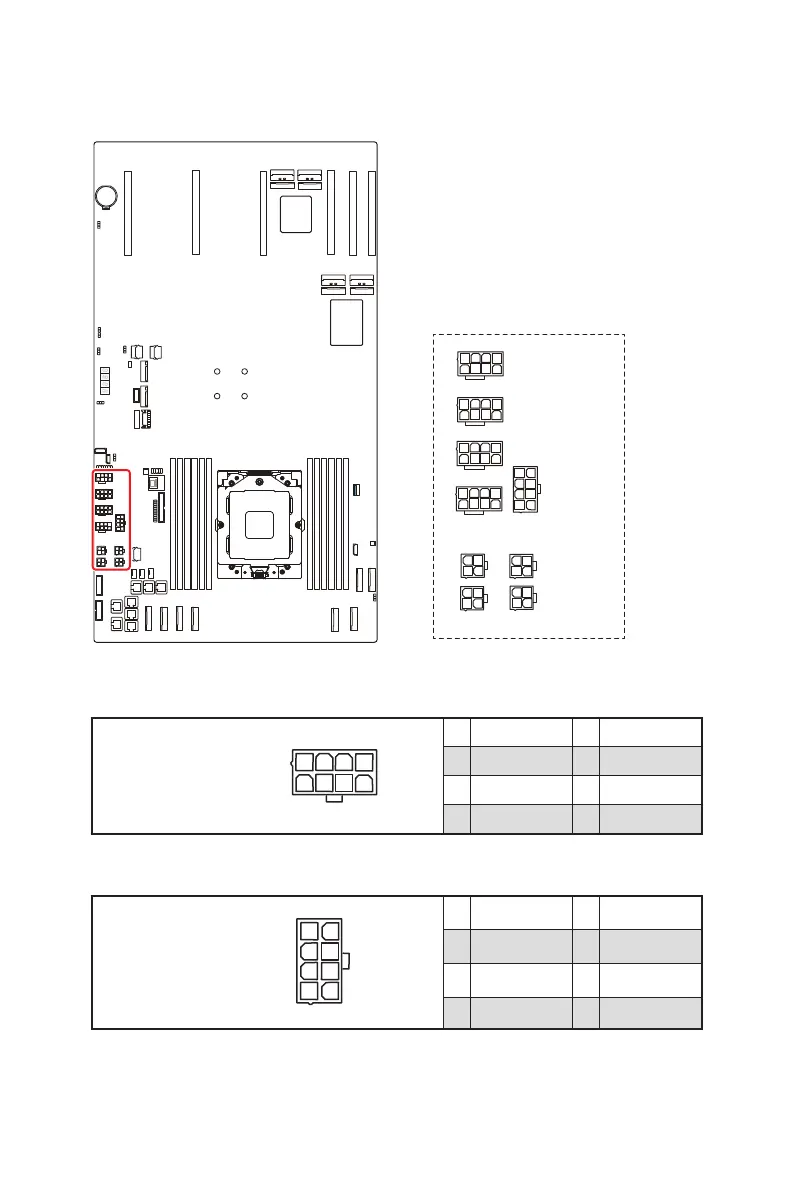

Power Connectors
Power Connectors
JPWR_MB1~4: 8-Pin 12V Power Connectors (for MB PWR)
8
5
1
4
JPWR_MB1~4
1 GND 5 P12V
2 GND 6 P12V
3 GND 7 P12V
4 GND 8 P12V
JPWR_MB5: 8-Pin 12V Power Connector (for BP PWR)
5
84
1
JPWR_MB5
1 GND 5
P12V
2 GND 6
P12V_AUX
3 GND 7
P12V_AUX
4 GND 8
P12V_STBY
JPWR_MB9
JPWR_MB8
JPWR_MB6
JPWR_MB7
JPWR_MB5
JPWR_MB4
JPWR_MB1
JPWR_MB2
JPWR_MB3
