MSI G4101 - JIPMB1: IPMB Header; JPSU1: PDB Header

34
Other Connectors and Components

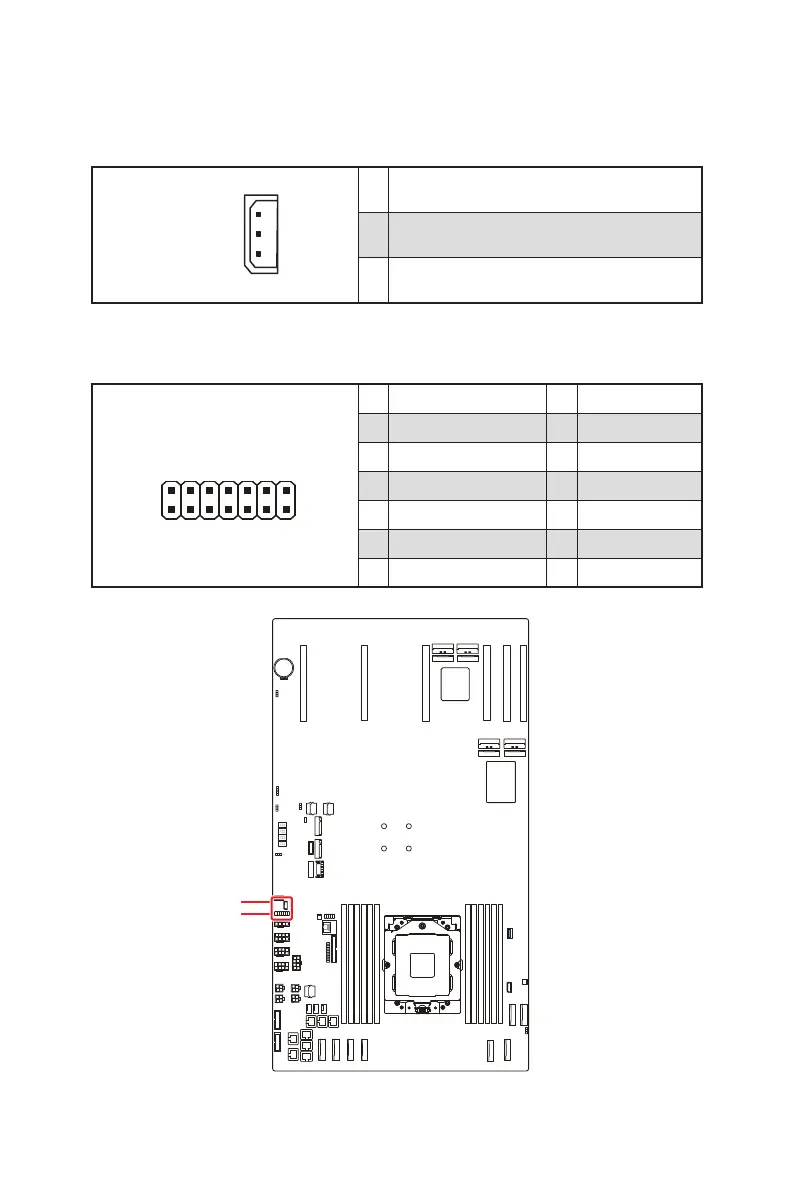

JIPMB1: IPMB Header
Intelligent Platform Management Bus (IPMB) box header is used to connect various
management components, such as Baseboard Management Controller (BMC).
JIPMB1
1
3
1
SMB_ PS1_DAT
2
GND
3
SMB_PS1_CLK
JPSU1: PDB Header
This header is designed to interface with the Power Distribution Board (PDB).
JPSU1
2
13
1
14
1 PMBUS_CLK1 2 VDD_33_DUAL_EN
3 PMBUS_DATA1 4 VDD_33_DUAL_PG
5 SMB_PMBUS_ALERT_N 6 VDD_5_DUAL_EN
7 PS_ON_N 8 VDD_5_DUAL_PG
9 PSU_PWROK_SH_BUF<0> 10 VDD_33_RUN_EN
11 PSU_PWROK_SH_BUF<1> 12 VDD_33_RUN_PG
13 NC 14 PSU_PWR_OK
JIPMB1
JPSU1
