Other Connectors and Components

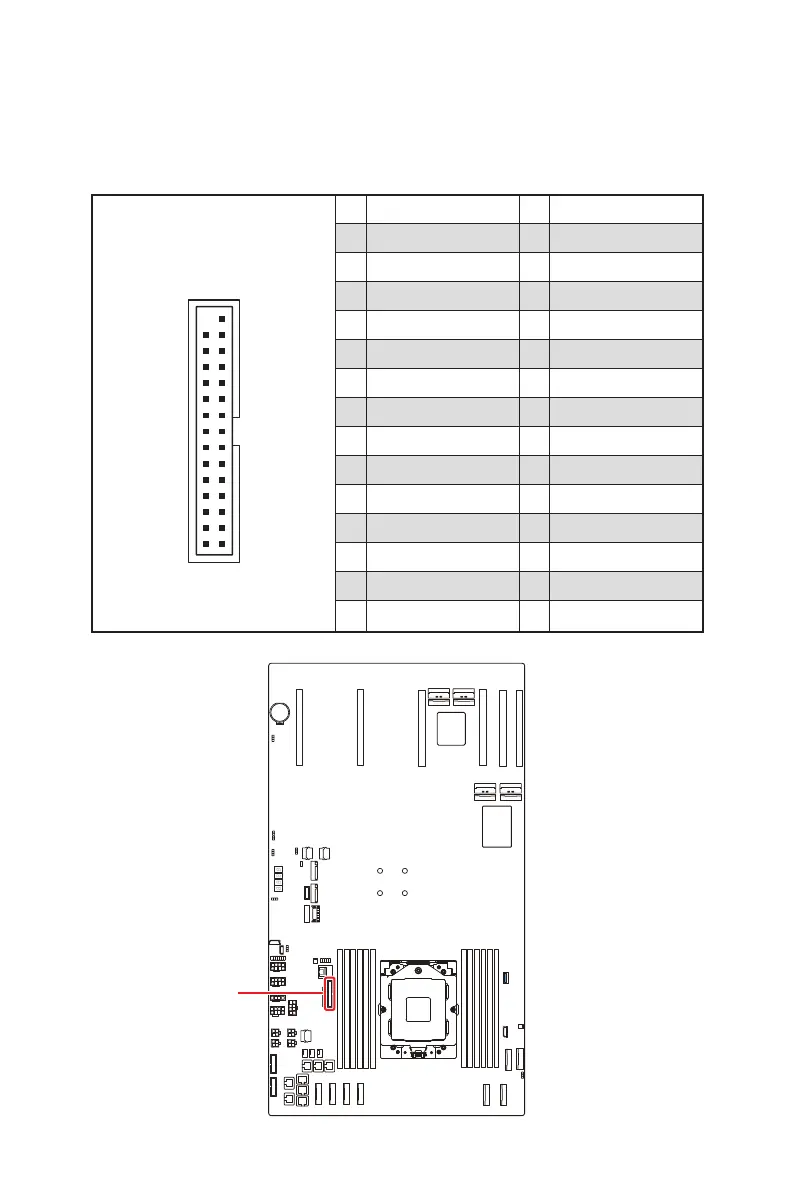

J95X8: 95X8 I/O Board Header
The 95X8 I/O board header is designed to interface with the 95X8 I/O Board. This
I/O Board functions as an I/O expander, enabling the expansion of input/output
capabilities within a system.
J95X8
12
2930
1 GPIOG7 2 PU_FAN_PCH_TACH3
3 GPIOG6 4 PU_FAN_PCH_TACH2
5 GND 6 GND
7 GND 8 GND
9 LED1_1000# 10 NC
11 LED1_100# 12 NC
13 LED0_AD0 14 NC
15 CONA_DCD 16 STATUS_LED#
17 CONA_RXD 18 HDDLED#
19 CONA_DSR 20 CONA_TXD
21 CONA_CTS 22 CONA_DTR
23 CONA_RI 24 CONA_RTS
25 NC 26 NC
27 P5V 28 P3V3_AUX
29
P5V
30
No pin
J95X8
