Other Connectors and Components

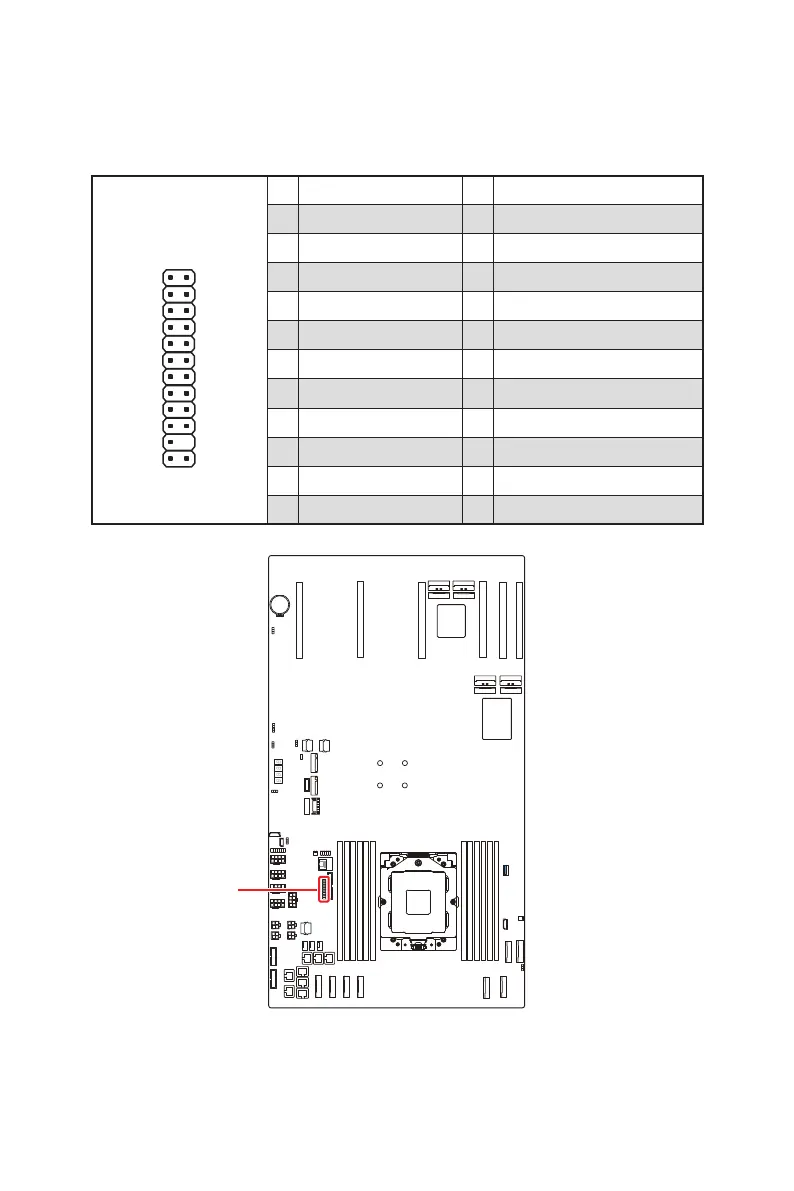

JFP1: Front Panel Header
The front panel header is provided for electrical connection to the front panel switches
and LEDs.
JFP1
12
2324
1
VDD_33_DUAL
2
P3V3_AUX
3
N/A
4
P3V3_AUX
5 FP_PWR_LED_B_R_N 6 FP_ID_LED_B_R_N
7 VDD_33_RUN 8 SYS_ERR_LED#_N
9 FP_HDD_ACT_LED_N 10 SYS_FLT_LED#_N
11 FP_PWR_BTN_L_R 12 VDD_33_DUAL
13 GND 14 LAN_NIC_0_ACT_N_R
15
FP_RST_BTN_L_R
16
SMB_BMC_HSBP_STBY_LVC3_SDA
17 GND 18 SMB_BMC_HSBP_STBY_LVC3_SCL
19 FP_ID_BTN_N_R 20 FP_CHASSIS_INTRUSION (TP)
21 GND 22 VDD_33_DUAL
23 NMI_BTN_N_R 24 LAN_NIC_1_ACT_N_R
JFP1
