MSI Hetis 945 - 2.6 Rear Panel Connectors; Rear Panel Port Overview; PS;2 Mouse and Keyboard Connectors

2-12

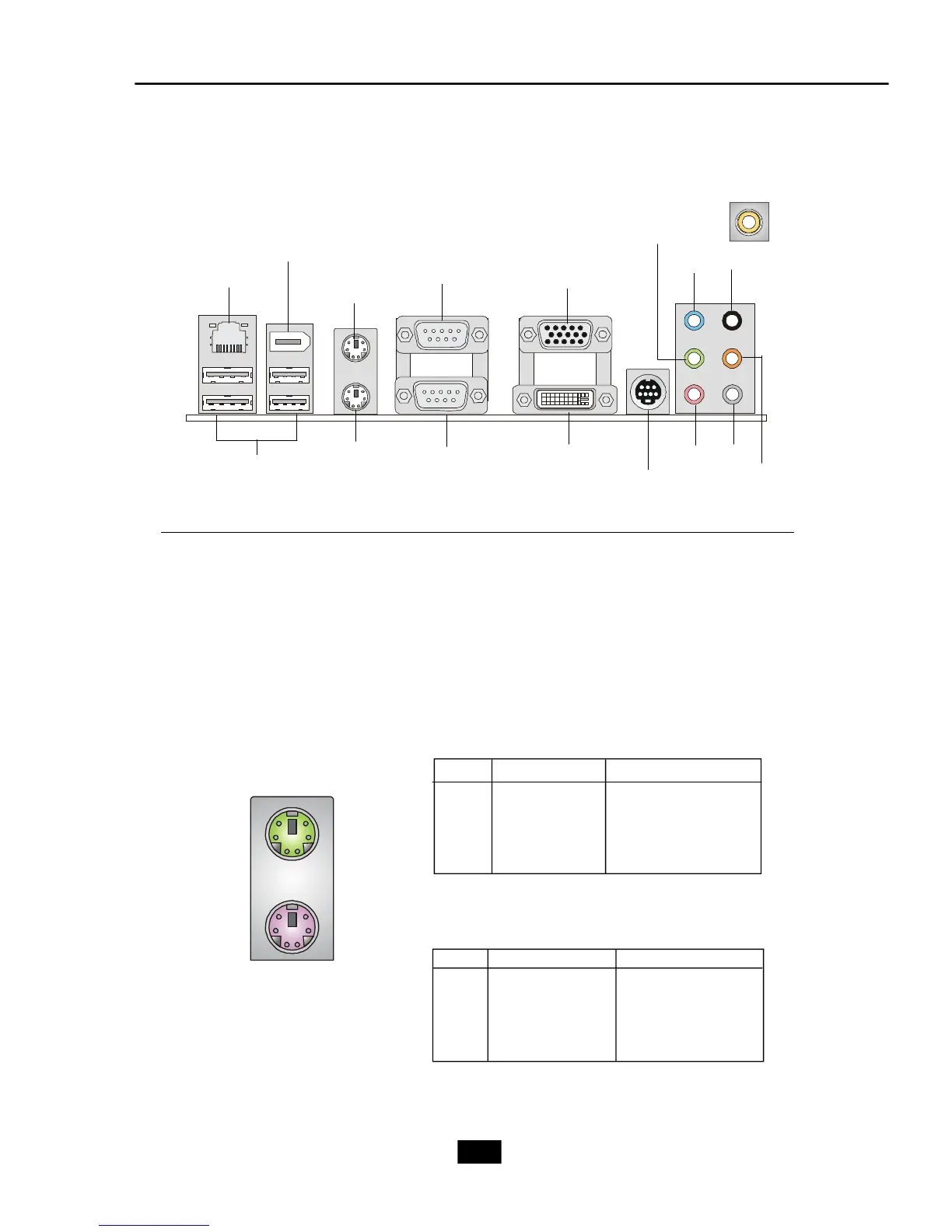

The Rear Panel provides the following connectors:
Mouse/Keyboard Connectors
The mainboard provides two standard PS/2
®
mini DIN connectors for attaching
PS/2
®
mouse and keyboard.
2.6 Rear Panel
PS/2 Keyboard (6-pin Female)
2
1
3
4
5
6
1
2
3
4
5
6
PS/2 Mouse (6-pin Female)
MIC -in
Line-in
Line-out
VGA Port
USB Ports
Keyboard
LAN Jack
Mouse
Serial Port
Serial Port
DVI Port
(For Standard
Version)
IEEE 1394 6pins
(For Standard Version)
S-Video Out
(For Standard
Version)
RS
CS
SS
PIN SIGNAL DESCRIPTION
1 Mouse DATA Mouse DATA
2 NC No connection
3 GND Ground
4 VCC +5V
5 Mouse Clock Mouse clock
6 NC No connection
Mouse Pin Definition
PIN SIGNAL DESCRIPTION
1 Keyboard DATA Keyboard DATA
2 NC No connection
3 GND Ground
4 VCC +5V
5 Keyboard Clock Keyboard clock
6 NC No connection
Keyboard Pin Definition
RCA Out
(For Standard
Version)
