MSI Hetis 945 - Front Panel Connectors: JFP1; CD-In Connector: JCD1

2-20
CD-in Connector: JCD1
The connector is for CD-ROM audio connector.
PIN SIGNAL DESCRIPTION
1 HD_LED_P Hard disk LED pull-up
2 FP PWR/SLP MSG LED pull-up
3 HD_LED_N Hard disk active LED
4 FP PWR/SLP MSG LED pull-up
5 RST_SW_N Reset Switch low reference pull-down to GND
6 PWR_SW_P Power Switch high reference pull-up
7 RST_SW_P Reset Switch high reference pull-up
8 PWR_SW_N Power Switch low reference pull-down to GND
9 RSVD_DNU Reserved. Do not use.

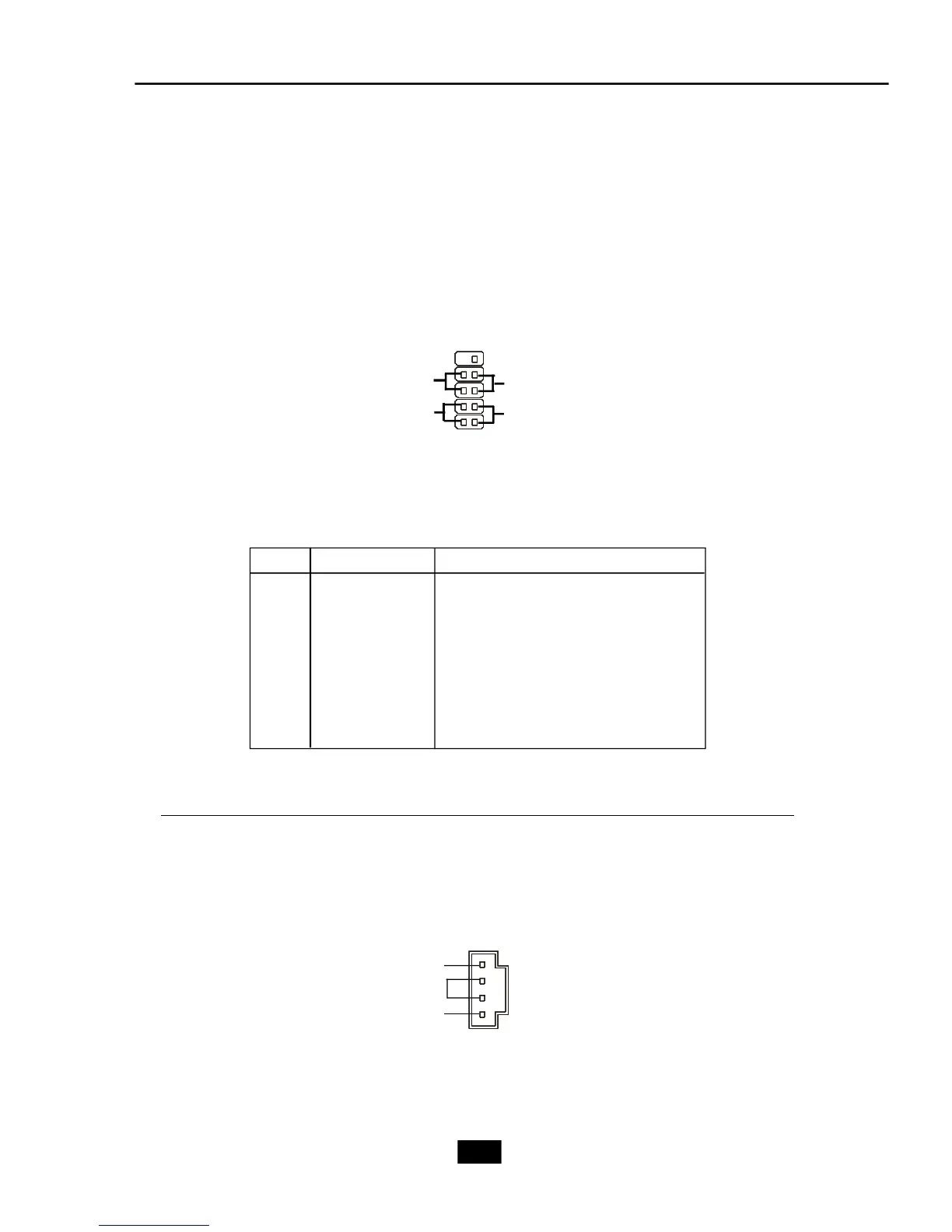

JFP1 Pin Definition
Front Panel Connectors: JFP1
The mainboard provides one front panel connector for you to connect to the
front panel switches and LEDs. JFP1 is compliant with Intel
®
Front Panel I/O Connectiv-
ity Design Guide.
GND
R
L
JCD1
12
910
JFP1
HDD
LED
Reset
Switch
Power
LED
Power
Switch
