14

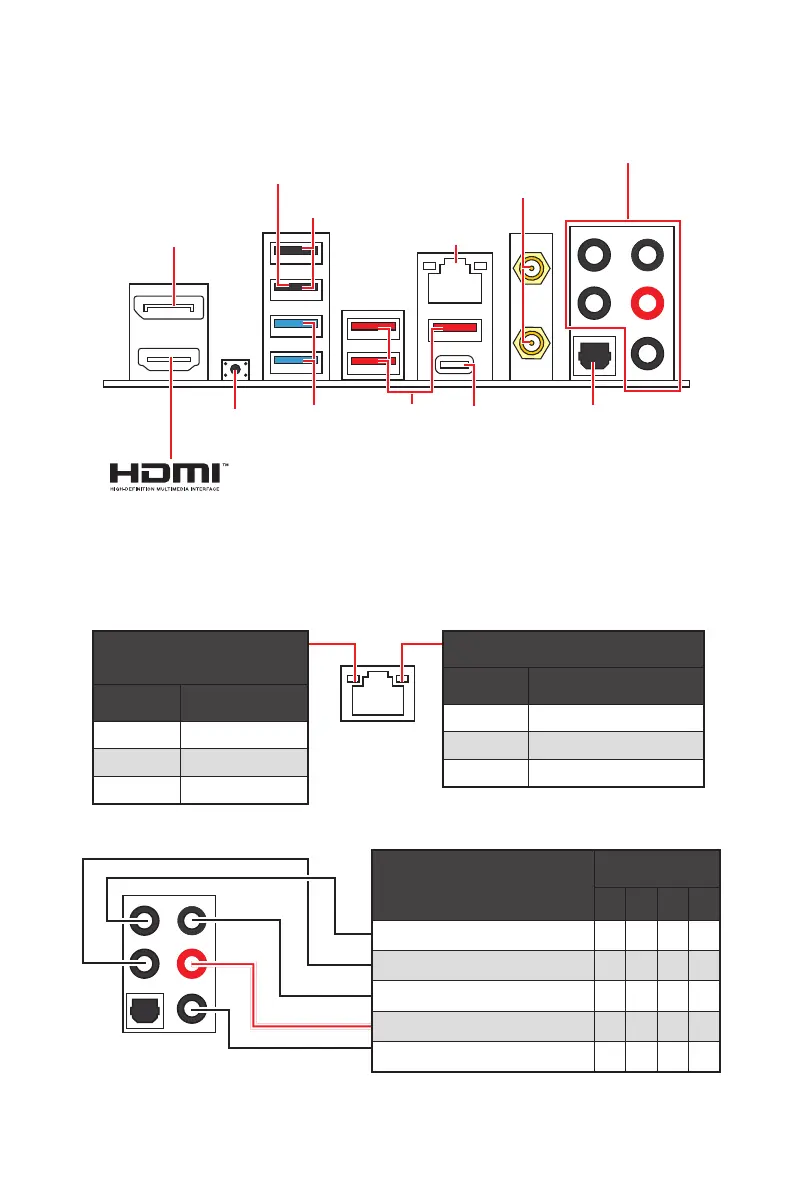

Panneau arrière Entrée/Sortie
Configuration des ports audio
Ports audio
Canal
2 4 6 8
Sortie centre/Caisson de basse



Entrée Microphone
Espace : vide)
Tableau explicatif de l’état de la LED du port LAN
LED indiquant la connexion
et l’activité
État Description
Éteint Pas de connexion
Jaune Connexion correcte
Clignote Activité en cours
LED indiquant la vitesse
État Description
Éteint 10 Mb/s
Vert 100/1000 Mb/s
Orange 2,5 Gb/s
Panneau arrière Entrée/Sortie
Port/Bouton Flash BIOS
BIOS avec Bouton Flash BIOS
USB 3.2
Gen 2x2
(20 Gb/s )

Bouton Flash
BIOS
2,5 Gb/s
LAN
Connecteurs


USB 3.2
Gen 2
(10 Gb/s)

USB 3.2
Gen 1
(5 Gb/s)

DisplayPort
Ports audio
Sortie S/PDIF
optique
Port Flash BIOS
