MSI MAG Z690 TOMAHAWK User Manual

13

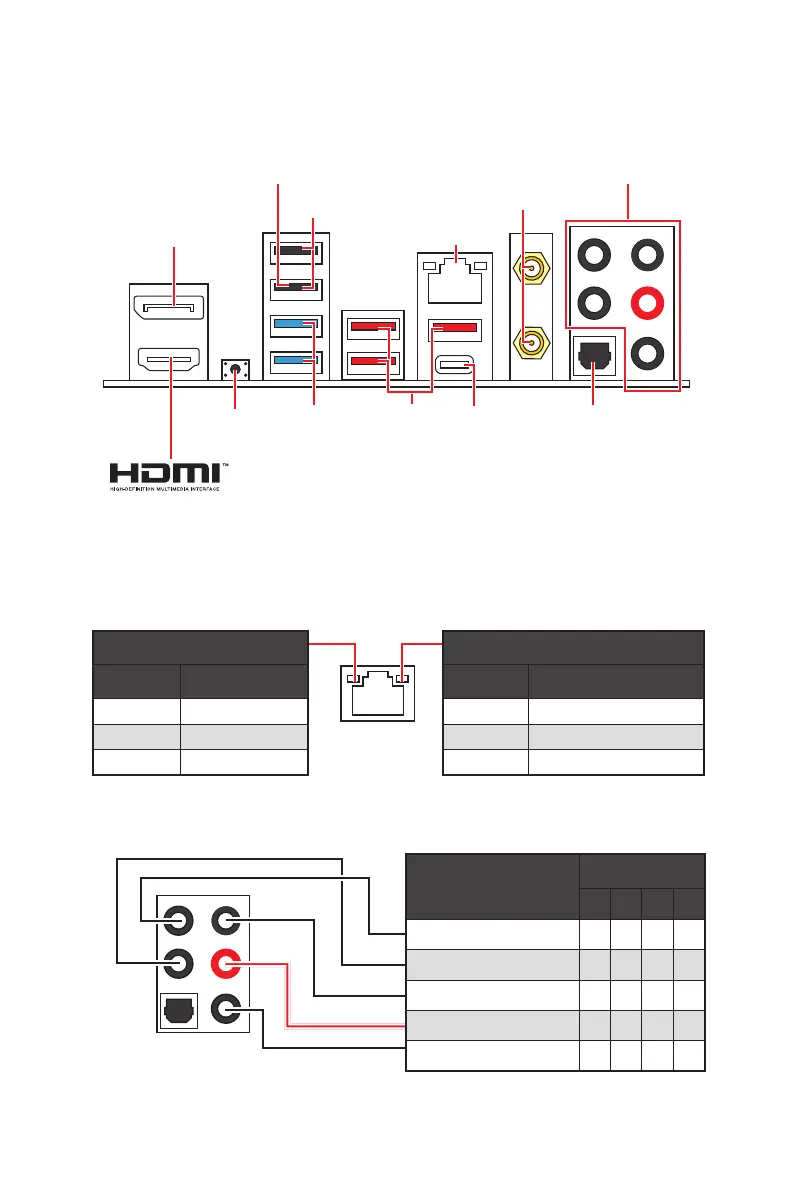

Rear I/O Panel
Audio Ports Configuration
Audio Ports
Channel
2 4 6 8
  
Rear Speaker Out   
 
    
Mic In
Blank: empty)
LAN Port LED Status Table
Link/ Activity LED
Status Description
Off No link
Yellow Linked
Blinking Data activity
Speed LED
Status Description
Off 10 Mbps connection
Green 100/1000 Mbps connection
Orange 2.5 Gbps connection
Rear I/O Panel
∙ Flash BIOS Port/ Button
BIOS Button.
USB 3.2
Gen 2x2
(20Gbps)

Flash BIOS
Button
2.5Gbps
LAN

connectors
USB 2.0

USB 3.2
Gen 2
(10Gbps)

USB 3.2
Gen 1
(5Gbps)

DisplayPort
Audio Ports
Optical

Flash BIOS
port

MSI MAG Z690 TOMAHAWK Specifications

General

Chipset	Intel Z690
CPU Socket	LGA 1700
Form Factor	ATX
Memory Slots	4
Maximum Memory	128 GB
SATA Ports	6
Network	2.5G LAN
Audio	Realtek ALC4080 Codec
Wi-Fi	No
Bluetooth	No
RAID Support	RAID 0, 1, 5, 10
M.2 Slots	3 x M.2 Gen4 1 x M.2 Gen3
