MSI MAG Z690 TOMAHAWK User Manual

27
Overview of Components

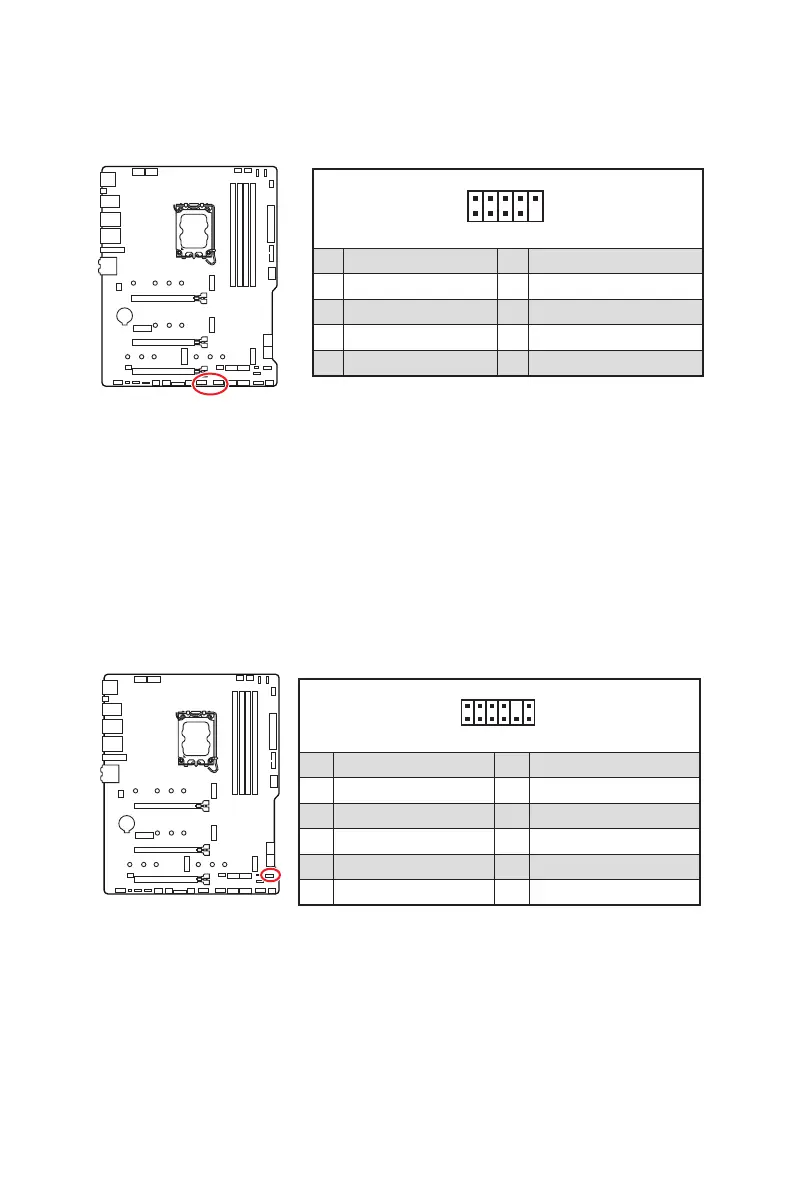

JUSB1~2: USB 2.0 Connectors
These connectors allow you to connect USB 2.0 ports on the front panel.
1
2 10
9
1 VCC 2 VCC
3  4 
5 USB0+ 6 USB1+
7 Ground 8 Ground
9 No Pin 10 NC
⚠
Important
∙ Note that the VCC and Ground pins must be connected correctly to avoid possible
damage.
∙ In order to recharge your iPad, iPhone and iPod through USB ports, please install
MSI Center utility.
JTPM1: TPM Module Connector
This connector is for TPM (Trusted Platform Module). Please refer to the TPM security
platform manual for more details and usages.
1
2 12
11
1 SPI Power 2 SPI Chip Select
3
Master In Slave Out (SPI Data) 4 Master Out Slave In (SPI Data)
5 Reserved 6 SPI Clock
7 Ground 8 SPI Reset
9 Reserved 10 No Pin
11 Reserved 12 Interrupt Request

MSI MAG Z690 TOMAHAWK Specifications

General

Chipset	Intel Z690
CPU Socket	LGA 1700
Form Factor	ATX
Memory Slots	4
Maximum Memory	128 GB
SATA Ports	6
Network	2.5G LAN
Audio	Realtek ALC4080 Codec
Wi-Fi	No
Bluetooth	No
RAID Support	RAID 0, 1, 5, 10
M.2 Slots	3 x M.2 Gen4 1 x M.2 Gen3
