MSI MAG Z690 TOMAHAWK - M.2 Slots (Key M)

21
Overview of Components
M2_1~4: M.2 Slots (Key M)
M2_1
M2_2
M2_4
M2_3
⚠
Important
∙ Intel® RST only supports PCIe M.2 SSD with
UEFI ROM.
∙ M2_2~4 slots support Intel® Optane™
Memory.

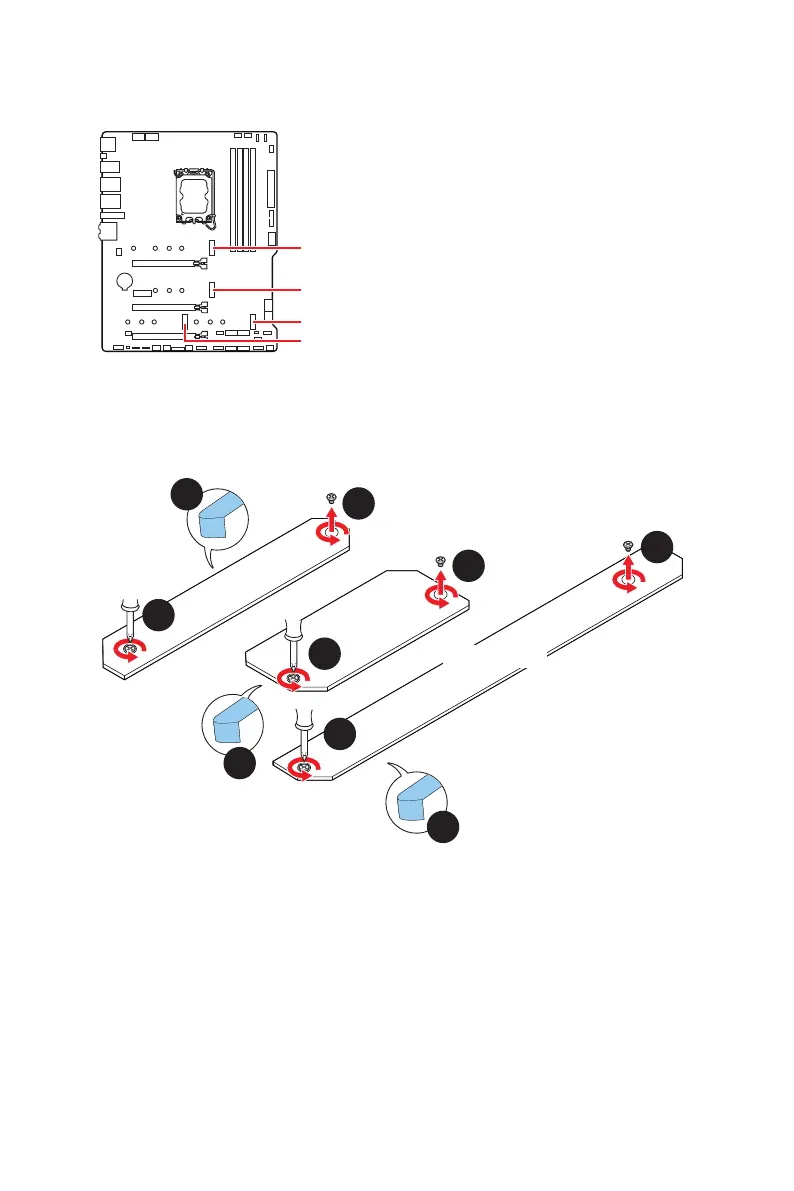

M.2 slot installation
1. Loosen the screws of M.2 SHIELD FROZR heatsink.
2. Remove the M.2 SHIELD FROZR and remove the protective films from the thermal
pads.
2
2
1
1
1
1
1
1
M2_2
M2_1
2
M2_3&M2_4
