MSI MAG Z690 TOMAHAWK User Manual

25
Overview of Components

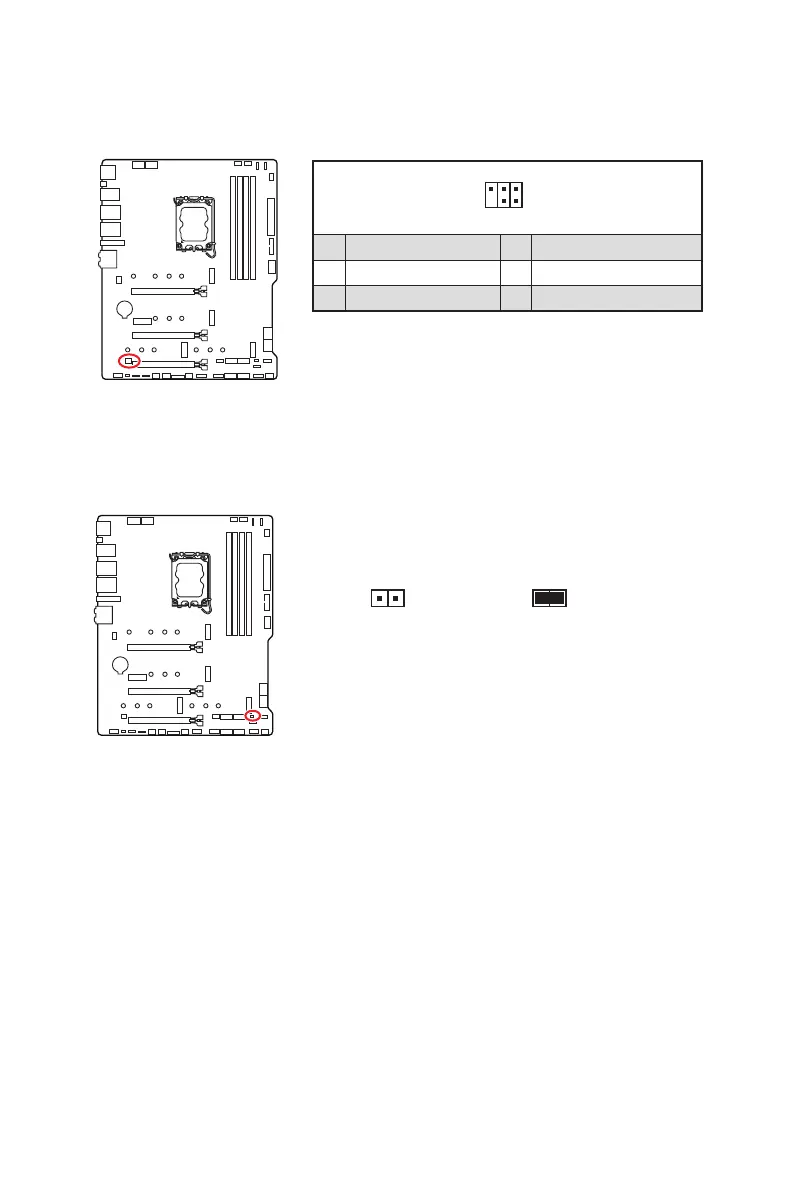

JDASH1 : Tuning Controller connector
This connector is used to connect an optional Tuning Controller module.
1
2 6
5
1 No Pin 2 NC
3 MCU_SMB_SCL_M 4 MCU_SMB_SDA_M
5 VCC5 6 Ground
JCI1: Chassis Intrusion Connector
This connector allows you to connect the chassis intrusion switch cable.
Normal
(default)
Trigger the chassis
intrusion event
Using chassis intrusion detector
1. Connect the JCI1 connector to the chassis intrusion switch/ sensor on the chassis.
2. Close the chassis cover.
3. Go to BIOS > SETTINGS > Security > Chassis Intrusion Configuration.
4. Set Chassis Intrusion to Enabled.
5. Press F10 to save and exit and then press the Enter key to select Yes.
6. Once the chassis cover is opened again, a warning message will be displayed on
screen when the computer is turned on.
Resetting the chassis intrusion warning
1. Go to BIOS > SETTINGS > Security > Chassis Intrusion Configuration.
2. Set Chassis Intrusion to Reset.
3. Press F10 to save and exit and then press the Enter key to select Yes.

MSI MAG Z690 TOMAHAWK Specifications

General

Chipset	Intel Z690
CPU Socket	LGA 1700
Form Factor	ATX
Memory Slots	4
Maximum Memory	128 GB
SATA Ports	6
Network	2.5G LAN
Audio	Realtek ALC4080 Codec
Wi-Fi	No
Bluetooth	No
RAID Support	RAID 0, 1, 5, 10
M.2 Slots	3 x M.2 Gen4 1 x M.2 Gen3
