MSI MAG Z690 TOMAHAWK User Manual

26
Overview of Components

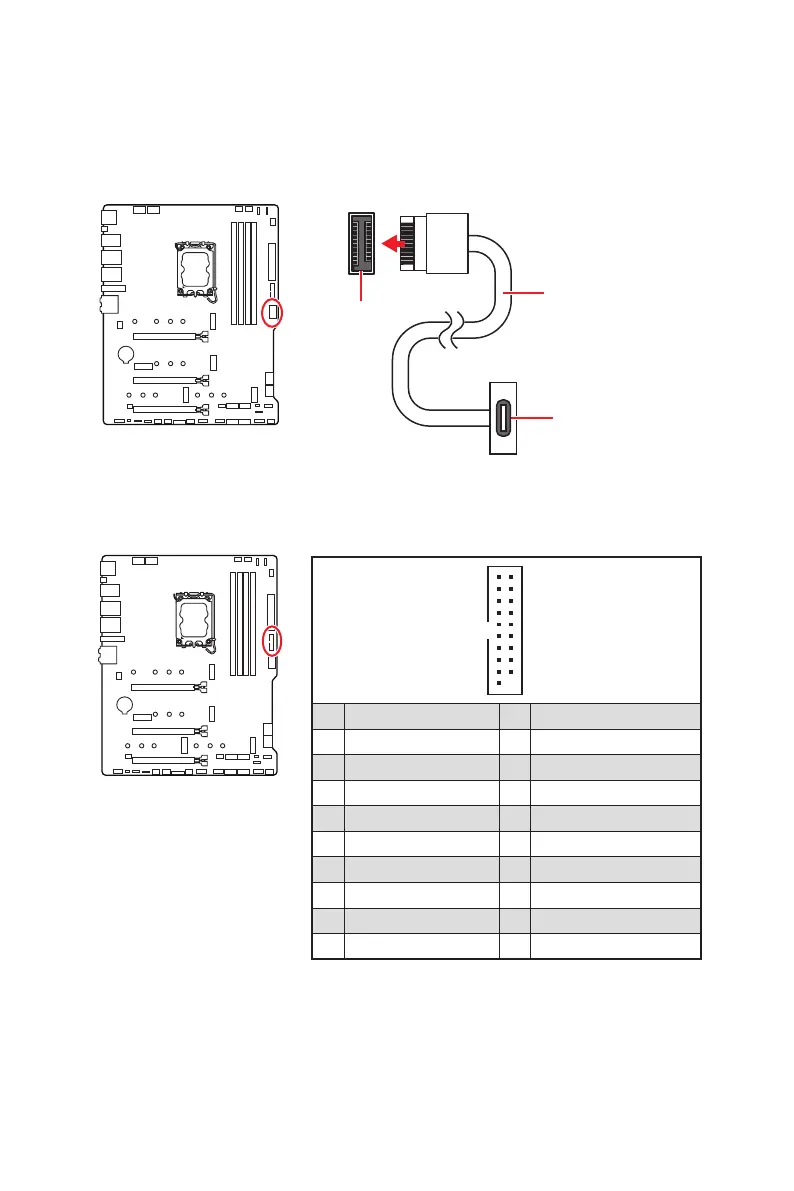

JUSB3: USB 3.2 Gen 1 Connector
This connector allows you to connect USB 3.2 Gen 1 5Gbps ports on the front panel.
⚠
Important
Note that the Power and Ground pins must be connected correctly to avoid possible
damage.
1
10 11
20
1 Power 11 USB2.0+
2 USB3_RX_DN 12 
3 USB3_RX_DP 13 Ground
4 Ground 14 USB3_TX_C_DP
5 USB3_TX_C_DN 15 USB3_TX_C_DN
6 USB3_TX_C_DP 16 Ground
7 Ground 17 USB3_RX_DP
8  18 USB3_RX_DN
9 USB2.0+ 19 Power
10 Ground 20 No Pin
JUSB4: USB 3.2 Gen 2 Type-C Connector

panel. The connector possesses a foolproof design. When you connect the cable, be
sure to connect it with the corresponding orientation.
JUSB4


the front panel

MSI MAG Z690 TOMAHAWK Specifications

General

Chipset	Intel Z690
CPU Socket	LGA 1700
Form Factor	ATX
Memory Slots	4
Maximum Memory	128 GB
SATA Ports	6
Network	2.5G LAN
Audio	Realtek ALC4080 Codec
Wi-Fi	No
Bluetooth	No
RAID Support	RAID 0, 1, 5, 10
M.2 Slots	3 x M.2 Gen4 1 x M.2 Gen3
