18
Overview of Components
Important
Always unplug the power cord from the power outlet before installing or removing
the CPU.
Please retain the CPU protective cap after installing the processor. MSI will deal
with Return Merchandise Authorization (RMA) requests if only the motherboard comes
with the protective cap on the CPU socket.
When installing a CPU, always remember to install a CPU heatsink. A CPU heatsink
is necessary to prevent overheating and maintain system stability.
Confirm that the CPU heatsink has formed a tight seal with the CPU before booting
your system.
Overheating can seriously damage the CPU and motherboard. Always make sure
the cooling fans work properly to protect the CPU from overheating. Be sure to apply
an even layer of thermal paste (or thermal tape) between the CPU and the heatsink to
enhance heat dissipation.
Whenever the CPU is not installed, always protect the CPU socket pins by covering
the socket with the plastic cap.
If you purchased a separate CPU and heatsink/ cooler, Please refer to the
documentation in the heatsink/ cooler package for more details about installation.
This motherboard is designed to support overclocking. Before attempting to
overclock, please make sure that all other system components can tolerate
overclocking. Any attempt to operate beyond product specifications is not
recommended. MSI® does not guarantee the damages or risks caused by inadequate
operation beyond product specifications.

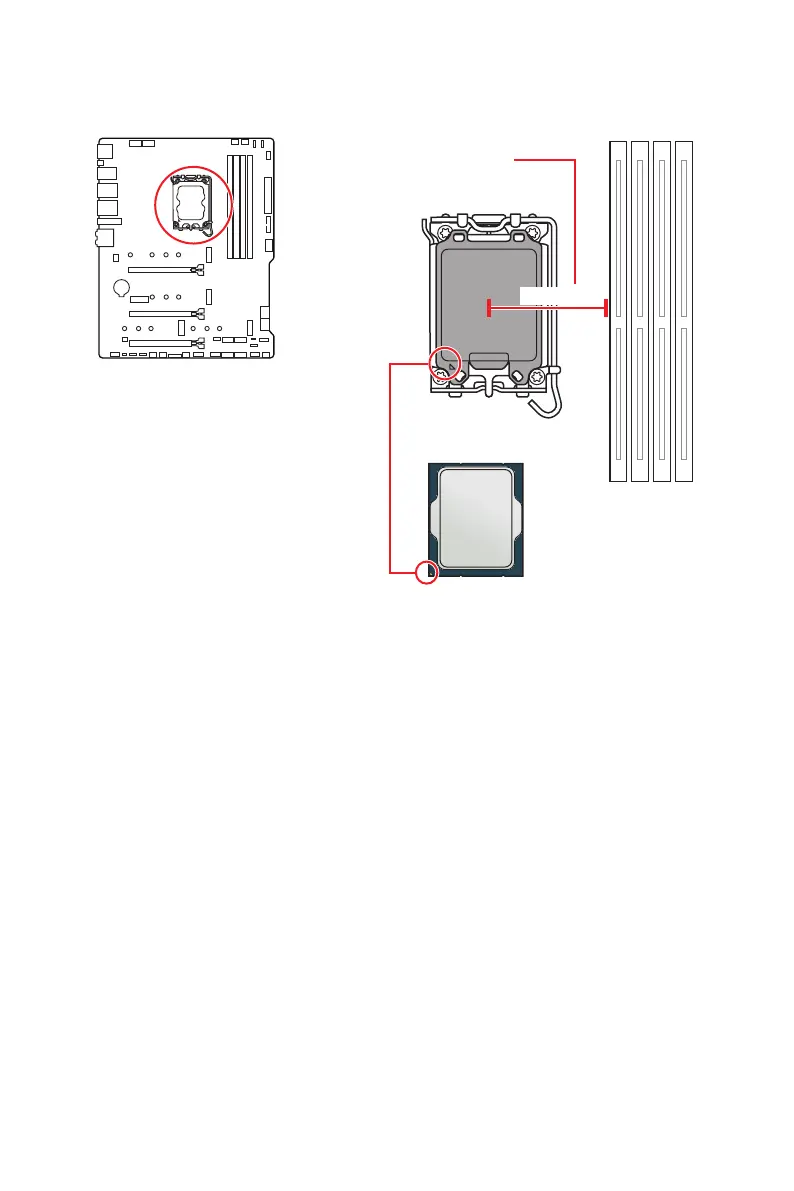

CPU Socket
Introduction to the LGA1700 CPU
The surface of the LGA1700 CPU has
four notches and a golden triangle to
assist in correctly lining up the CPU for
motherboard placement. The golden
triangle is the Pin 1 indicator.
Distance from the center of the
CPU to the nearest DIMM slot.
52.4 mm

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the MSI MAG Z690 TOMAHAWK and is the answer not in the manual?

MSI MAG Z690 TOMAHAWK Specifications

General IconGeneral
ChipsetIntel Z690
CPU SocketLGA 1700
Form FactorATX
Memory Slots4
Maximum Memory128 GB
SATA Ports6
Network2.5G LAN
AudioRealtek ALC4080 Codec
Wi-FiNo
BluetoothNo
RAID SupportRAID 0, 1, 5, 10
M.2 Slots3 x M.2 Gen4 1 x M.2 Gen3
