Hardware Setup
2-19

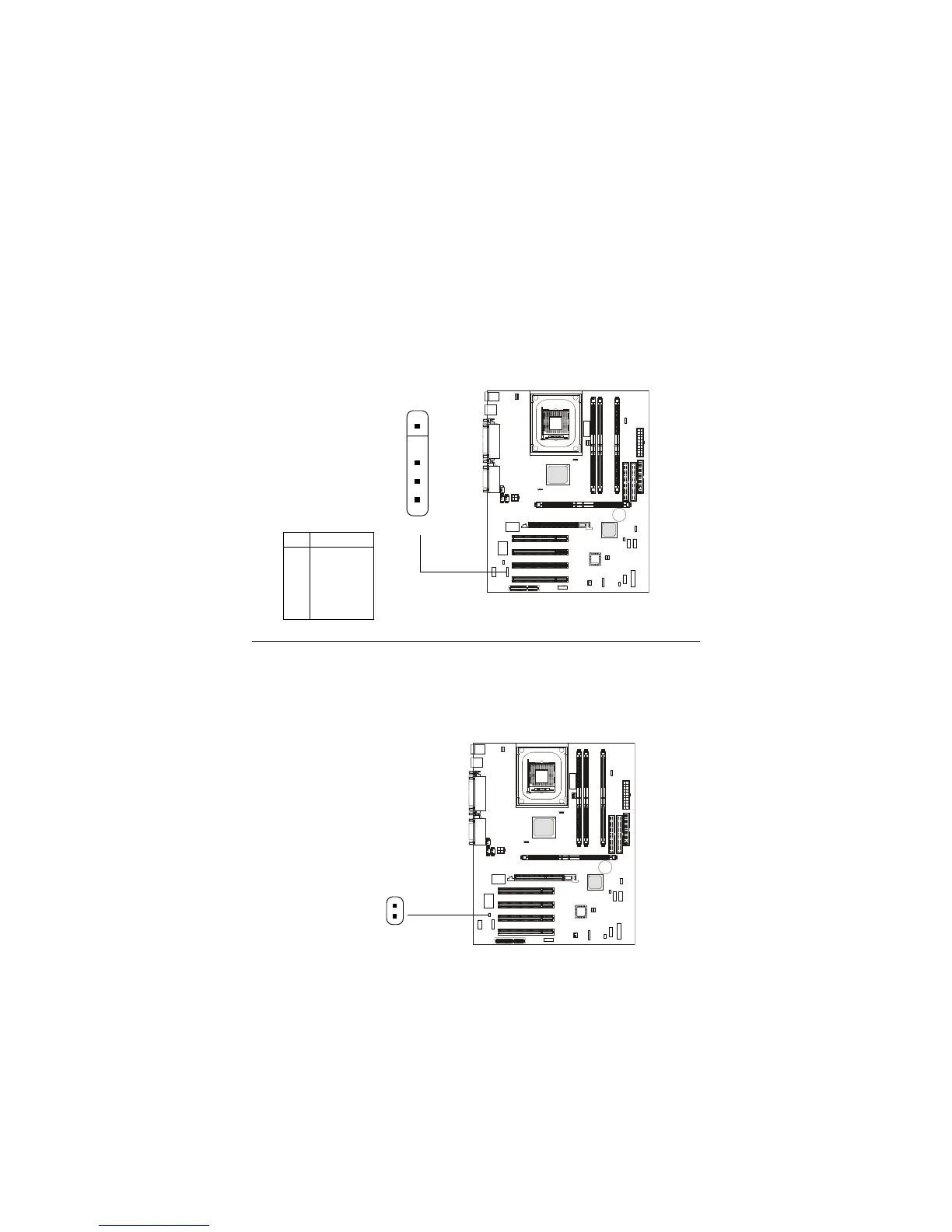

IrDA Infrared Module Connector: J18
This connector allows you to connect to an IrDA Infrared module. You
must configure the setting through the BIOS setup to use the IR function.
Chassis Intrusion Switch Connector: J12
The connector is connected to a 2-pin chassis switch. If the chassis is
opened, the switch will be short. The system will record this status and show
a warning message on the screen. To clear the warning, you must enter the
BIOS utility and clear the record.
1 VCC
2NC
3 IRRX
4 GND
5 IRTX
Pin Signal
J18
5
1
J12
