MSI MS-6545 - Front USB Connectors: JUSB1 & JUSB2

Hardware Setup
2-21
Pin Description Pin Description
1 VCC 2 GND
3 USB0- 4 GND
5 USB0+ 6 USB1+
7 GND 8 USB1-
9 GND 10 VCC
JUSB1 Pin Definition
Pin Description Pin Description
1 VCC 2 VCC
3 USB0- 4 USB1-
5 USB0+ 6 USB1+
7 GND 8 GND
9 NC 10 OC0
JUSB2 Pin Definition

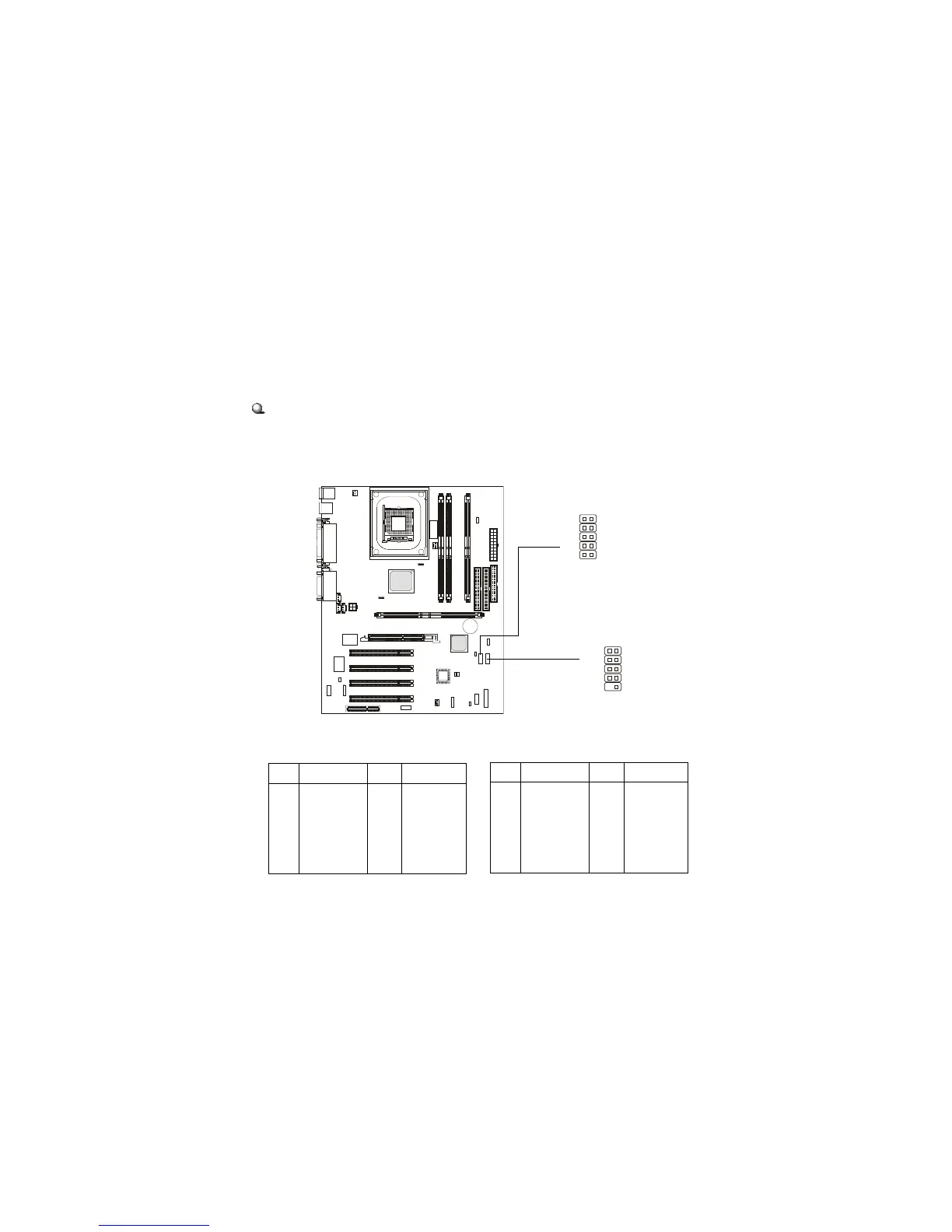

Front USB Connectors: JUSB1 & JUSB2
Depending on users’ request, the mainboard can provide ONE or TWO
USB (Universal Serial Bus) pin headers that allow you to connect optional USB
ports for front panel.
Option 1
JUSB1: MSI spec
JUSB2: Intel spec/compliant with Intel
®
I/O Connectivity Design Guide
10
2
9
1
JUSB1
(MSI spec)
10
2
9
1
JUSB2
(Intel spec)
