MSI MS-7173 - Back Panel Connectors

2-10
MS-7173 M-ATX Mainboard

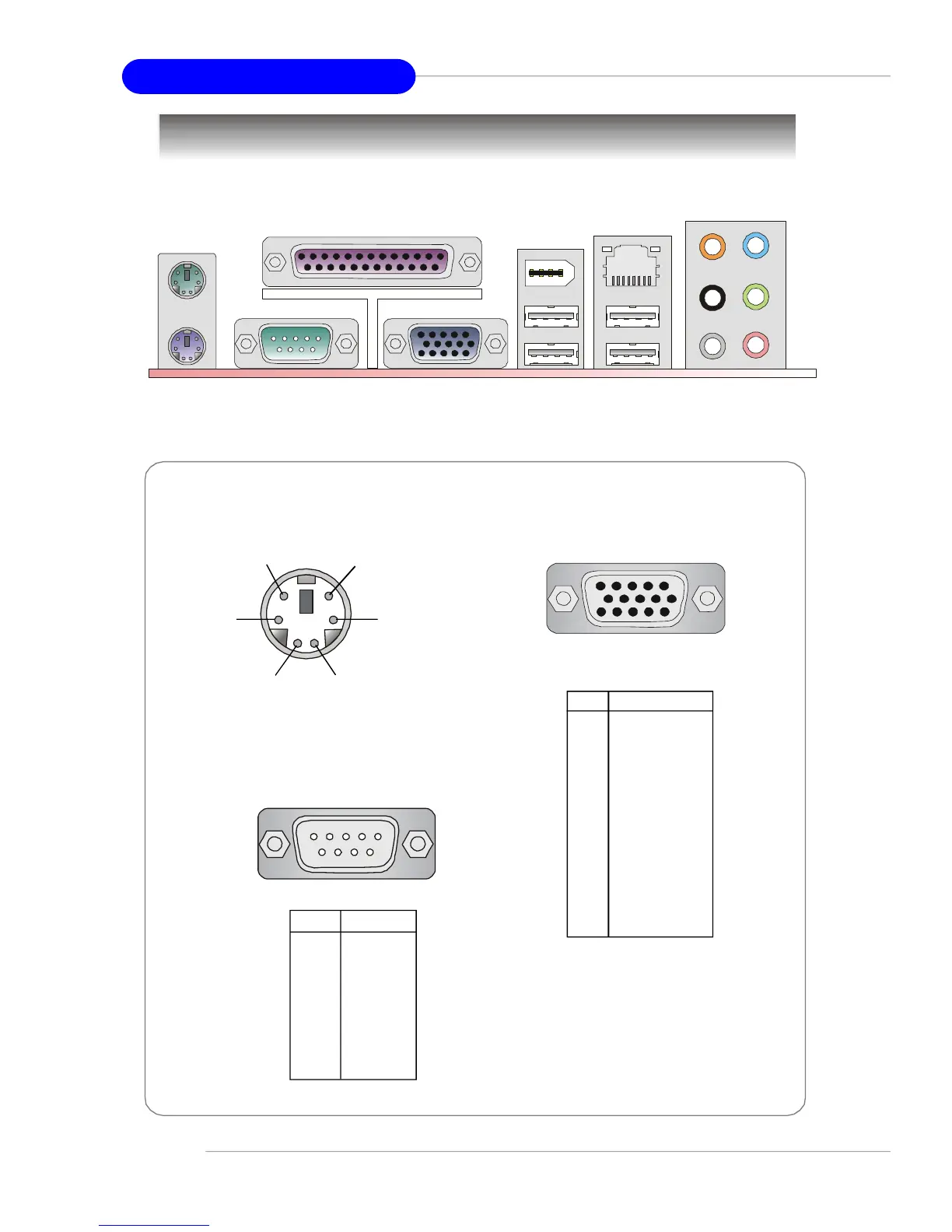

Back Panel
Serial Port
PIN SIGNAL
1 DCD
2 SIN
3 SOUT
4 DTR
5 GND
6 DSR
7 RTS
8 CTS
9 RI
1 2 3 4 5
6 7 8 9
Mouse/Keyboard Connector
Pin1
Mouse/KBD
DATA
Pin2 NC
Pin3 GNDPin4 VCC
Pin5
Mouse/KBD Clock
Pin6 NC
VGA Port
PIN SIGNAL
1 RED
2 GREEN
3 BLUE
4 N/C
5 GND
6 GND
7 GND
8 GND
9 +5V
10 GND
11 N/C
12 SDA
13 Horizontal Sync
14 Vertical Sync
15 SCL
1
5
11
15
Keyboard USB Ports
L-In
Mouse
Parallel
1394 Port
(Optional)
LAN
VGA PortSerial Port
RS-Out
CS-Out
Side
Surround
L-Out
Mic
