2-16
MS-7173 M-ATX Mainboard

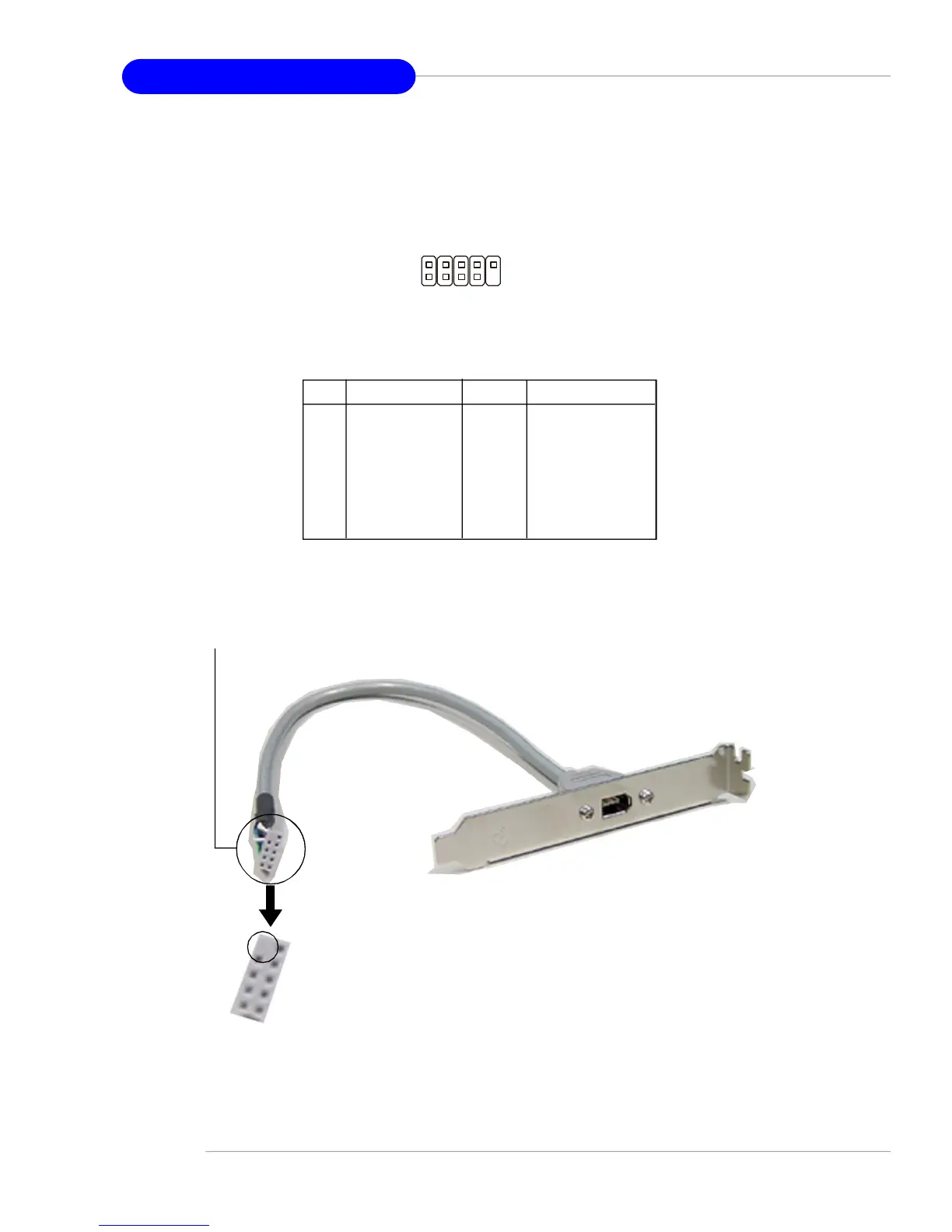

IEEE 1394 Connectors: J1394_1 (Optional)
The mainboard provides one 1394 pin header that allows you to connect IEEE 1394
ports via an external IEEE1394 bracket (optional).
Pin Definition
PIN SIGNAL PIN SIGNAL
1 TPA+ 2 TPA-
3 Ground 4 Ground
5 TPB+ 6 TPB-
7 Cable power 8 Cable power
9 Key (no pin) 10 Ground
Foolproof
design
Connected to J1394_1
IEEE1394 Bracket (Optional)
J1394_1
1
2
9
10
