MS-7173 M-ATX Mainboard

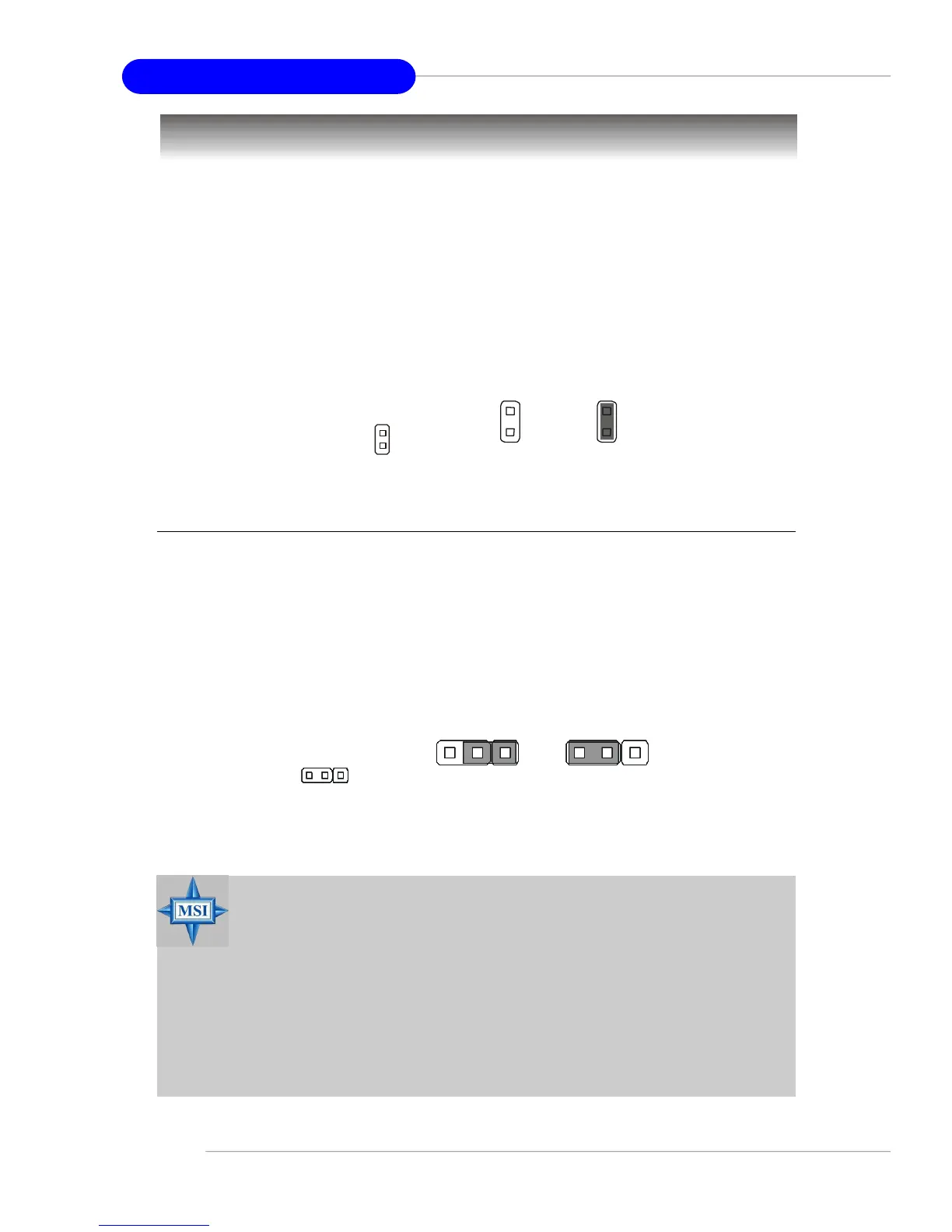

The motherboard provides the following jumpers for you to set the computer’s function.
This section will explain how to change your motherboard’s function through the use
of jumpers.
Jumpers
Clear BIOS Password Jumper: JPWD1
The jumper is used to clear the BIOS password. To clear the password, open the
jumper and restart your computer.
Clear CMOS Jumper: JCMOS1
There is a CMOS RAM onboard that has a power supply from external battery to keep
the data of system configuration. With the CMOS RAM, the system can automatically
boot OS every time it is turned on. If you want to clear the system configuration, set
the JCMOS1 (Clear CMOS Jumper ) to clear data.
NormalClear
JPWD1
MSI Reminds You...
To clear CMOS you should:
1. switch off the system and short 2-3 pin of the JCMOS1;
2. switch on the system again and the message “CMOS checksum
error” should appear;
3. switch off the system and return to 1-2 pin (Keep Data) position;
4. switch on again for operation.
Please avoid clearing CMOS while the system is on; it will damage
the mainboard.
JCMOS1
1
Keep Data Clear Data
3
1
3
1
