MS-7173 M-ATX Mainboard

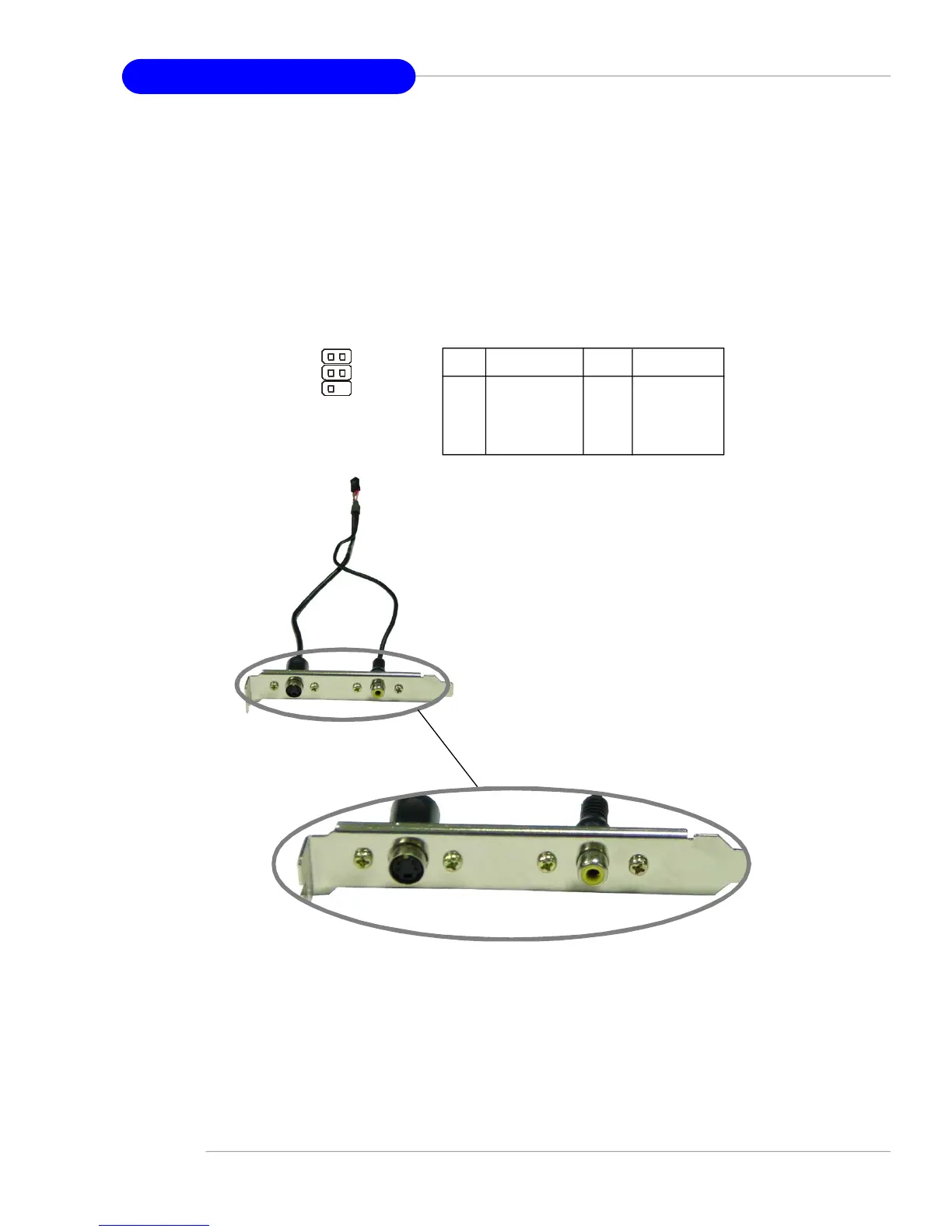

TV-Out Connector: JTV1 (Optional)
The mainboard optionally provides a TV-Out connector for you to attach a TV-Out
bracket. The TV-Out bracket offers two types of TV-Out connectors: S-Video and
RCA Composite connector. Select the appropriate one to connect to the television
and the television will be able to display PC’s information.
3
JTV1
1
5
4
2
TV-Out Bracket
(Optional)
TV-Out Connector
(S-Video)
TV-Out Connector
(RCA Composite)
Pin Description Pin Description
1 GND 4 COMP
2 Y 5 GND
3 C
JTV1 Pin Definition
