2-12
MS-7173 M-ATX Mainboard

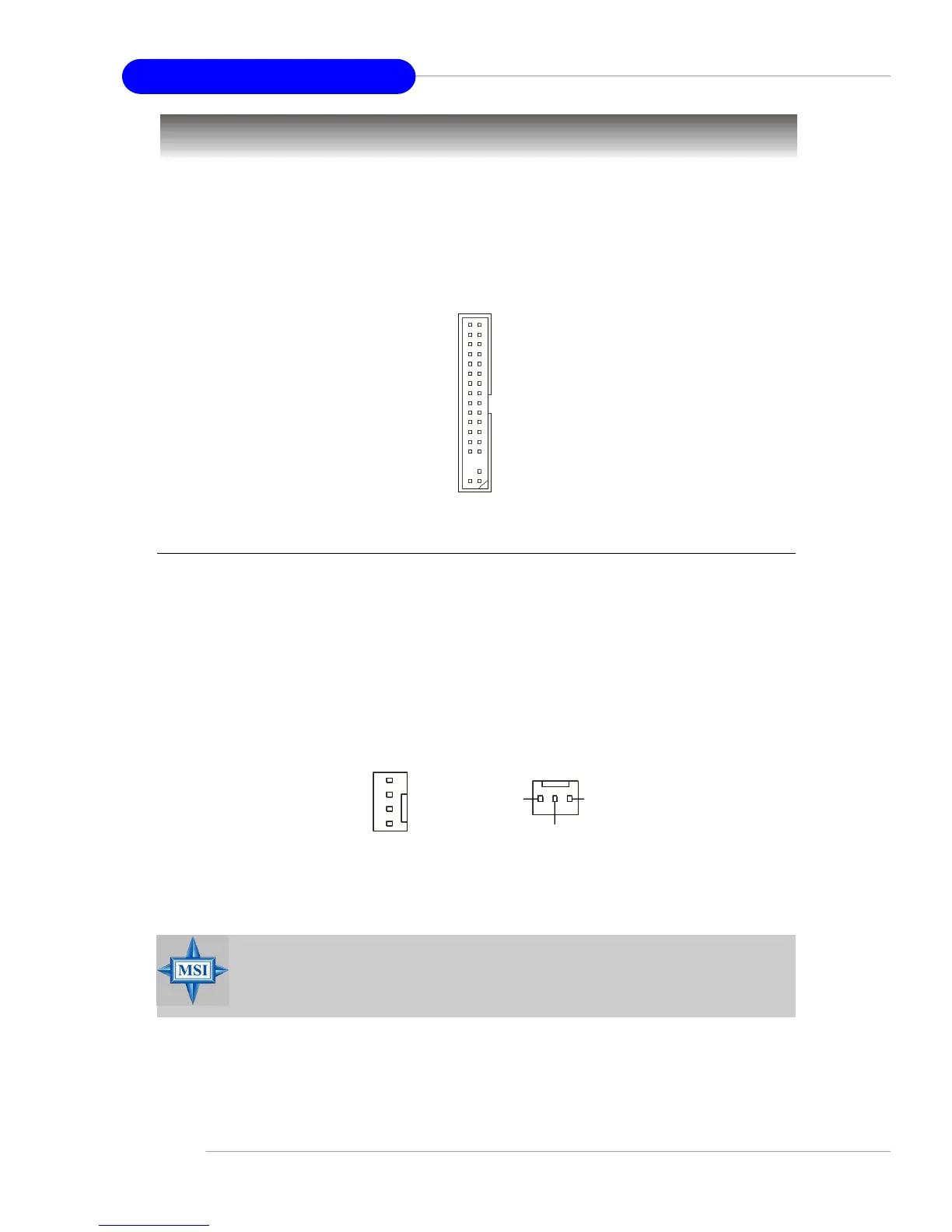

Floppy Disk Drive Connector: FDD1
The mainboard provides a standard floppy disk drive connector that supports 360K,
720K, 1.2M, 1.44M and 2.88M floppy disk types.
Connectors
Fan Power Connectors: CPU_FAN1 / CPU_FAN2
The fan power connectors support system cooling fan with +12V. When connecting
the wire to the connectors, always take note that the red wire is the positive and
should be connected to the +12V, the black wire is Ground and should be connected
to GND. If the mainboard has a System Hardware Monitor chipset on-board, you must
use a specially designed fan with speed sensor to take advantage of the CPU fan
control.
MSI Reminds You...
Please refer to the recommended CPU fans at Intel
®
official website
or consult the vendors for proper CPU cooling fan.
FDD1
CPU_FAN1
SENSOR
+12V
GND
CONTROL
CPU_FAN2
SENSOR
+12V
GND
