A-23
Realtek ALC880 8-Channel Audio
n 4-Channel Mode for 4-Speaker Output
Description:
Connect two speakers to back
panel’s Line Out connector and
two speakers to the real-chan-
nel Line Out connector.
1 Line In
2 Line Out (Front channels)
3 MIC
4 Line Out (Rear channels)
5 Line Out (Center and Subwoofer channel, but no functioning in this mode)
6 Side Surround (in 7.1CH / 5.1CH)

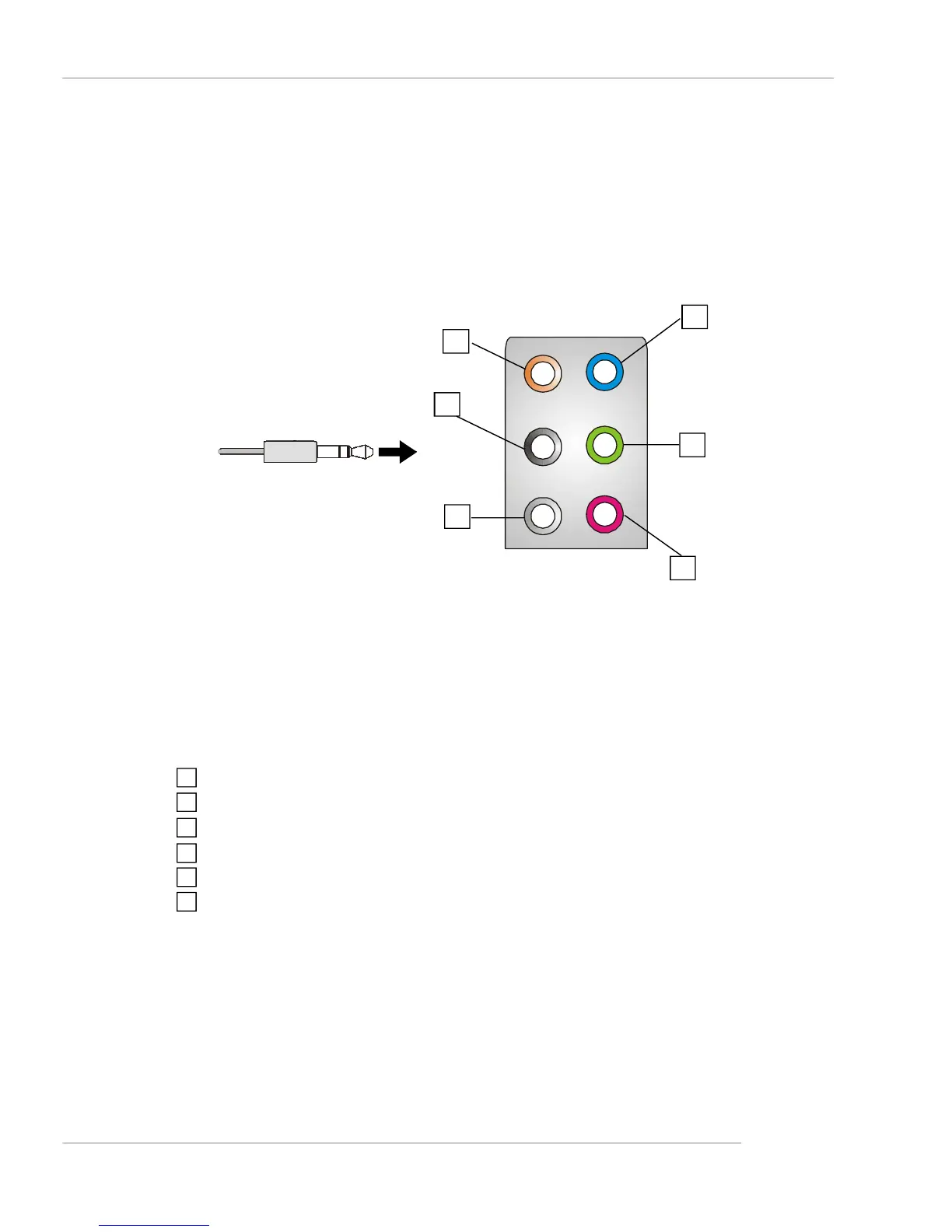

4-Channel Analog Audio Output
Back Panel
3
1
2
6
4
5
To Next Page
