MSI MS-98F6 - Rear Panel I;O Ports

2-5
Hardware Setup MS-98F6

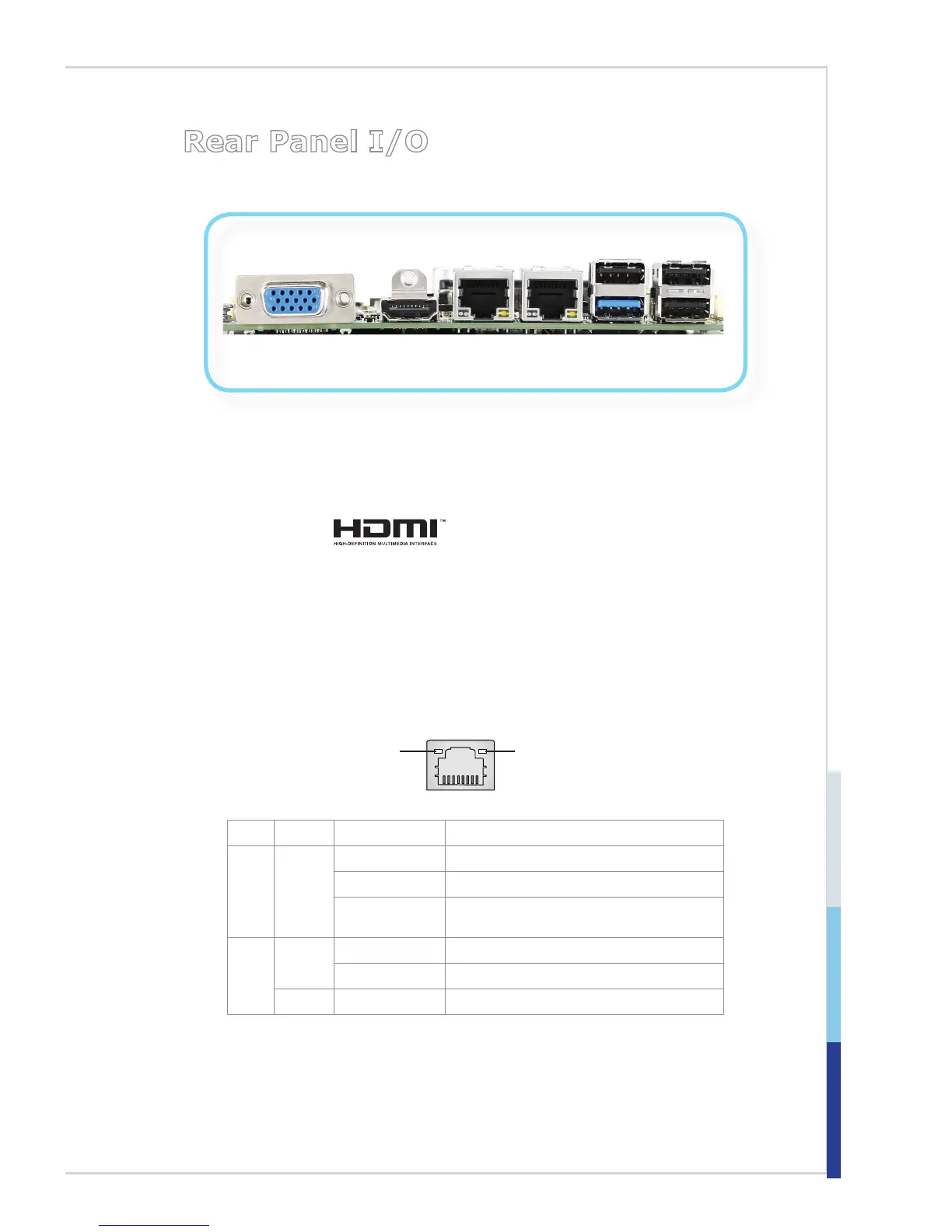

Rear Panel I/O
HDMI Port
LAN
Port
USB 2.0
Port
VGA Port
USB 2.0
Port
LAN
Port
USB 3.0
Port
USB 2.0
Port
h VGA Port
The DB15-pin female connector is provided for monitor.
h HDMI Port
The High-De󰘰nition Multimedia Interface (HDMI) is an all-digital audio-video
interface that is capable of transmitting uncompressed streams. HDMI supports
all types of TV formats, including standard, enhanced, or high-de󰘰nition video,
plus multi-channel digital audio on a single cable.
h LAN Jack
The standard RJ-45 LAN jack is for connection to the Local Area Network (LAN).
You can connect a network cable to it.
Yellow Green/ Orange
LED Color LED State Condition
Left Yellow Off LAN link is not established.
On (steady state) LAN link is established.
On (blinking) The computer is communicating with another
computer on the LAN.
Right Green Off 10 Mbit/sec data rate is selected.
On 100 Mbit/sec data rate is selected.
Orange On 1000 Mbit/sec data rate is selected.
