MSI MS-98F6 - Front Panel Connector: JFP1; LPC Debug Port Connector: JDP1

2-9
Hardware Setup MS-98F6

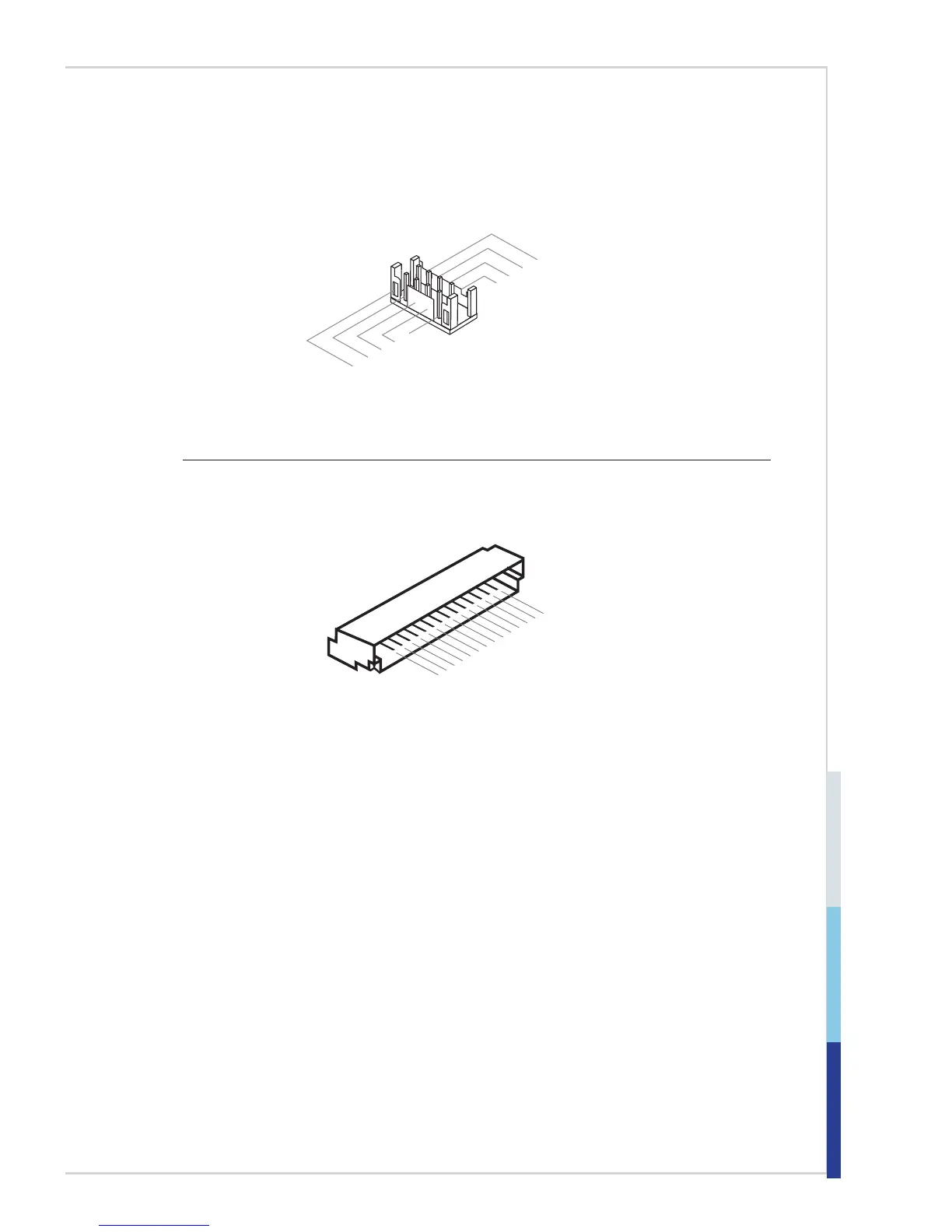

Front Panel Connector: JFP1
This front panel connector is provided for electrical connection to the front panel
switches & LEDs and is compliant with Intel Front Panel I/O Connectivity Design
Guide.
8.GND
3.HD_LED
1.HDD+
6.PWSW+
5.GND
4.SUS_LED
7.RESET+
2.PWR_LED
9.NC
LPC Debug Port Connector: JDP1
This connectoris LPC debug port.
1.LPC_FRAME
#
2.LPC_AD3
3.LPC_AD2
4.LPC_AD1
5.LPC_AD0
6.L_LDRQ0#
7.TPM_CLK
8.SERIRQ_R
9.PLTRST_TPM#
10.VCC5
11.VCC3
12.GND
13.NA
14.GND
