MSI MS-98F6 - GPIO Pin Header: JGPIO1; Serial ATA Connector: SATA1

2-8
Hardware Setup MS-98F6

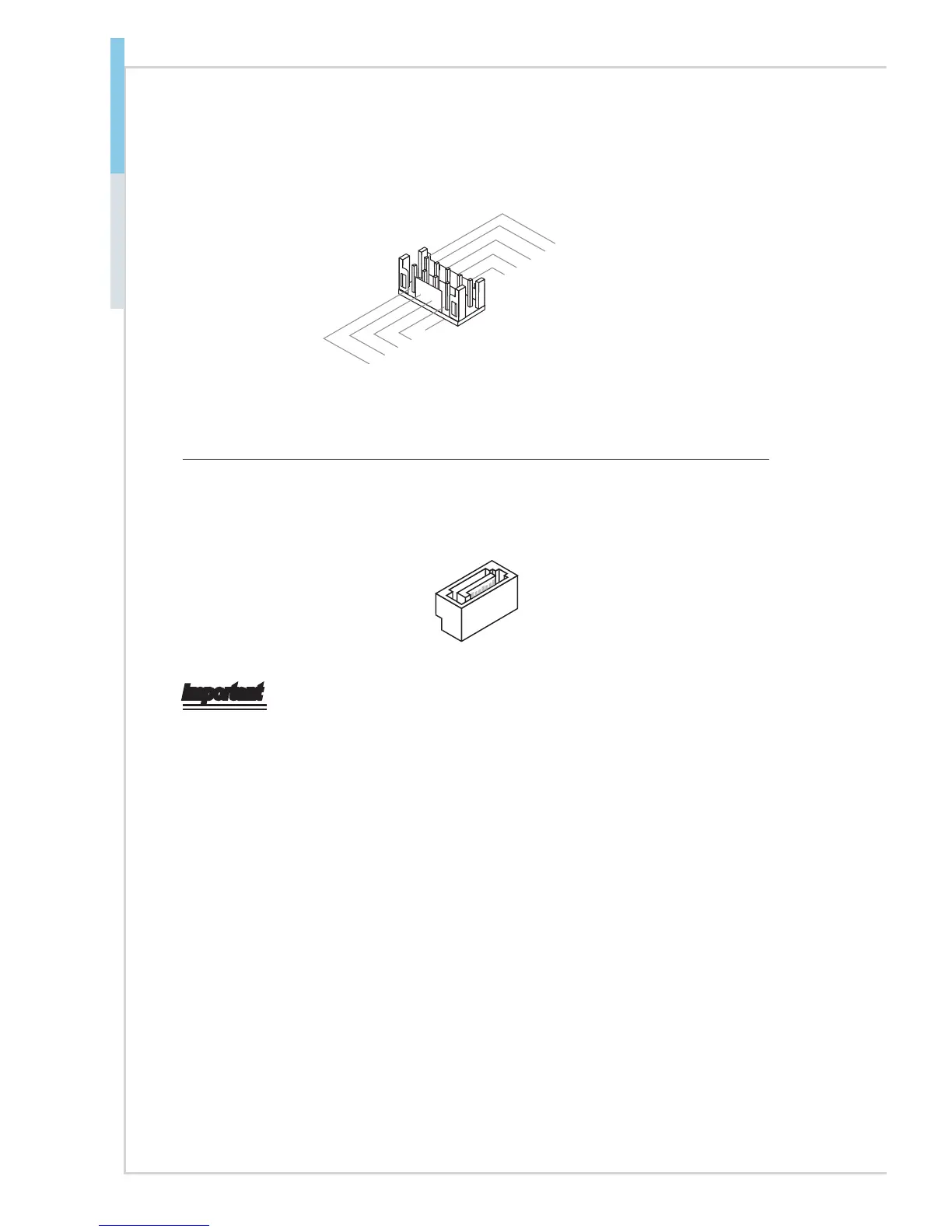

GPIO Pin Header: JGPIO1
This connector is provided for the General-Purpose Input/Output (GPIO)
peripheral module.
9.N_GPO
0
8.N_GPI1
3.N_GPO
3
1.GND
6.N_GPI2
5.N_GPO2
4.N_GPI
3
7.N_GPO1
2.VCC5
10.N_GPI0
Serial ATA Connector: SATA1
This connector is a high-speed Serial ATA interface port. Each connector can
connect to one Serial ATA device.
Important
Please do not fold the SATA cable into a 90-degree angle. Otherwise, data loss
may occur during transmission.
