Hardware Setup MS-98F6
PS/2 Keyboard/Mouse Connector: JKBMS1
This connector is provided to connect a keyboard and a mouse.

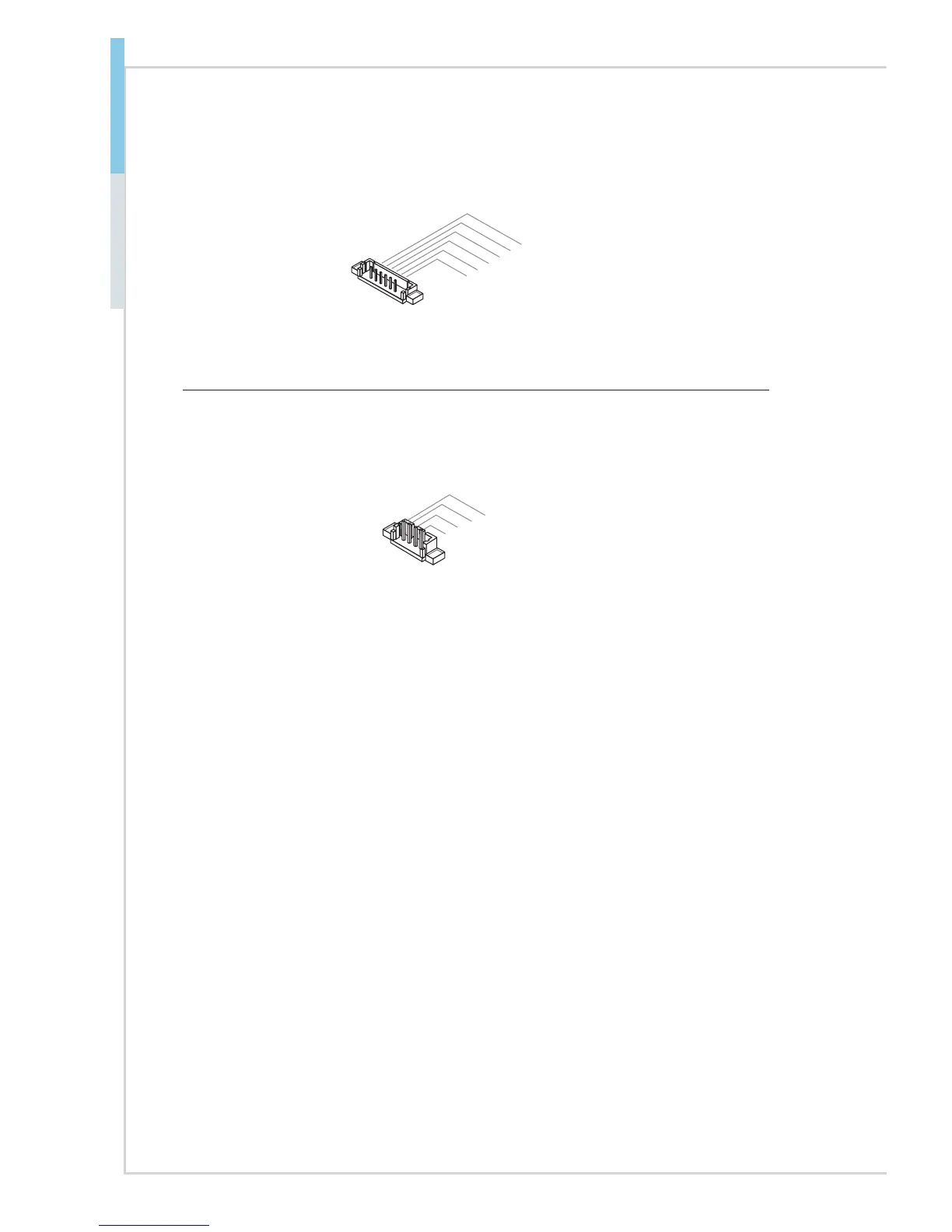

6.MS_CL
K
4.KB_CLK
5.5VSB
3.MS_DAT
1.KB_DAT
2.GN
D
I2C Bus Connector: JSMB1
This connector, known as I2C, is for users to connect System Management Bus
(SMBus) interface.
1.5VSB
2.SMBCLK
3.SMBDATA
4.GN
D
