MSI MS-98F6 - LVDS Power Jumper: JVDD1; LVDS Inverter Power Jumper: JINV1; TXE F;W Jumper: JME1

2-17
Hardware Setup MS-98F6

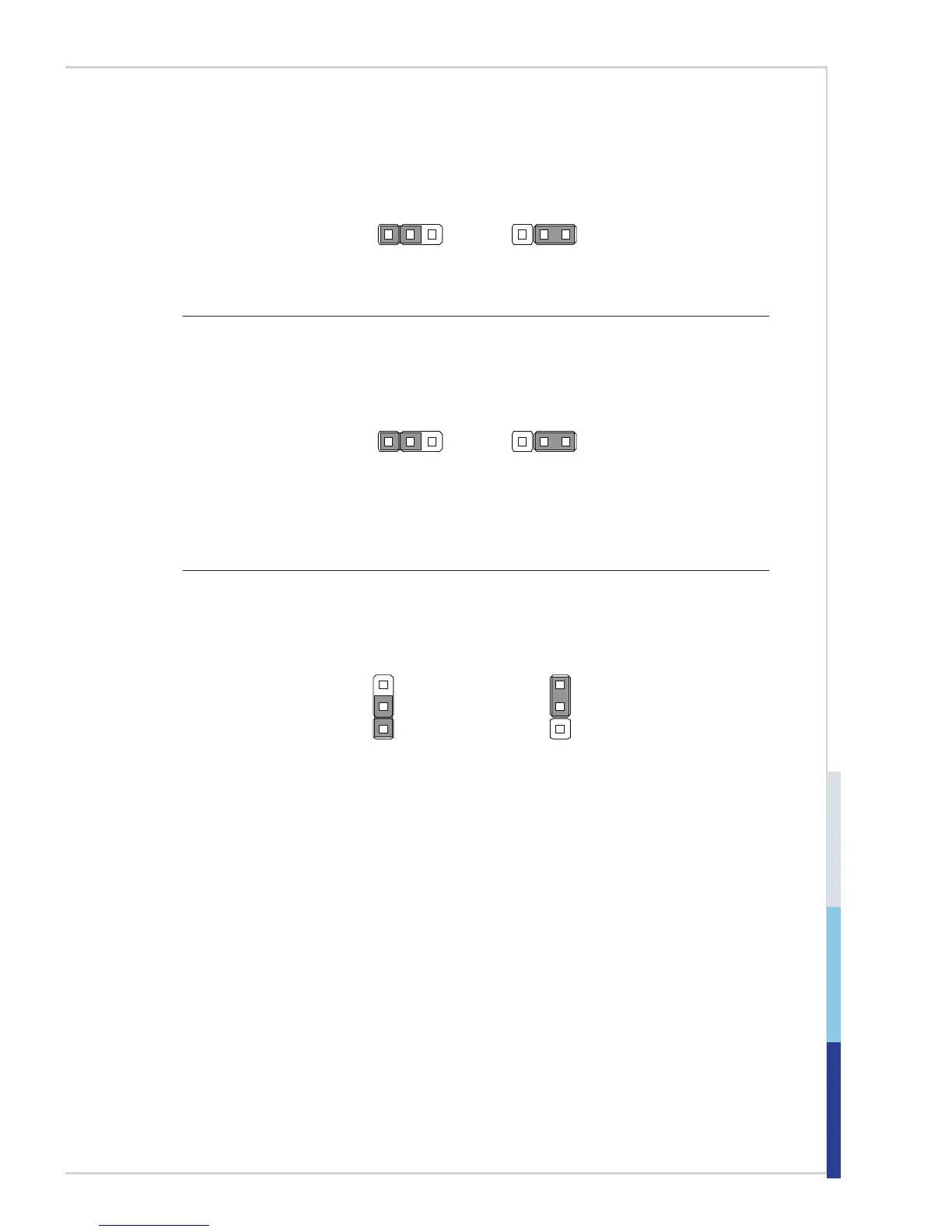

LVDS Power Jumper: JVDD1
Use this jumper to specify the operation voltage of the LVDS interface at panel.
3V 5V
11
LVDS Inverter Power Jumper: JINV1
Use this jumper to specify the operation voltage of the interver interface at panel.
5V 12V
11
TXE F/W Jumper: JME1
This jumper is used to enable/disable the Intel TXE F/W.
1 1
Normal ME disable
