MSI MS-98F6 - USB 2.0 Connector: JUSB1, JUSB2; Serial Port Connector: COM1 ~ COM6

2-10
Hardware Setup MS-98F6

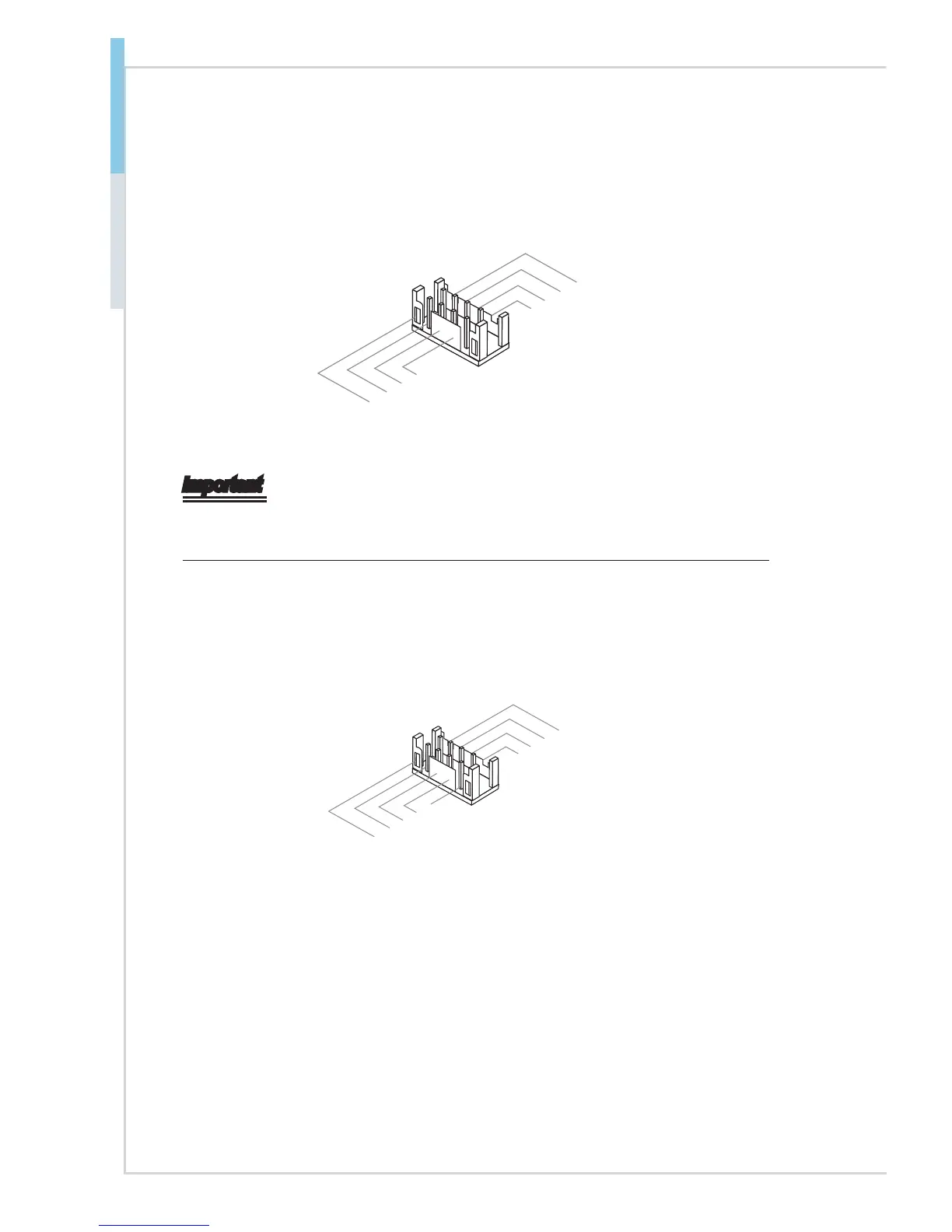

USB 2.0 Connector: JUSB1, JUSB2
This connector, compliant with Intel I/O Connectivity Design Guide, is ideal for
connecting high-speed USB interface peripherals such as USB HDD, digital
cameras, MP3 players, printers, modems and the like.
8.Power
3.USB-
1.Powe
r
6.USB-
5.USB+
4.USB+
7.GND
2.GND
Important
Note that the pins of VCC and GND must be connected correctly to avoid pos-
sible damage.
Serial Port Connector: COM1 ~ COM6
This connector is a 16550A high speed communications port that sends/receives
16 bytes FIFOs. You can attach a serial device to it. COM1 supports RS-232/
422/ 485. COM2~6 supports RS232.
8.NCTS
3.NSOUT
1.NDCD
6.NDSR
5.GND
4.NDTR
7.NRTS
2.NSIN
9.VCC
