MSI MS-98F6 - Audio Amplifier Pinheader: JAMP1; Front Audio Connector: JAUD1

2-13
Hardware Setup MS-98F6

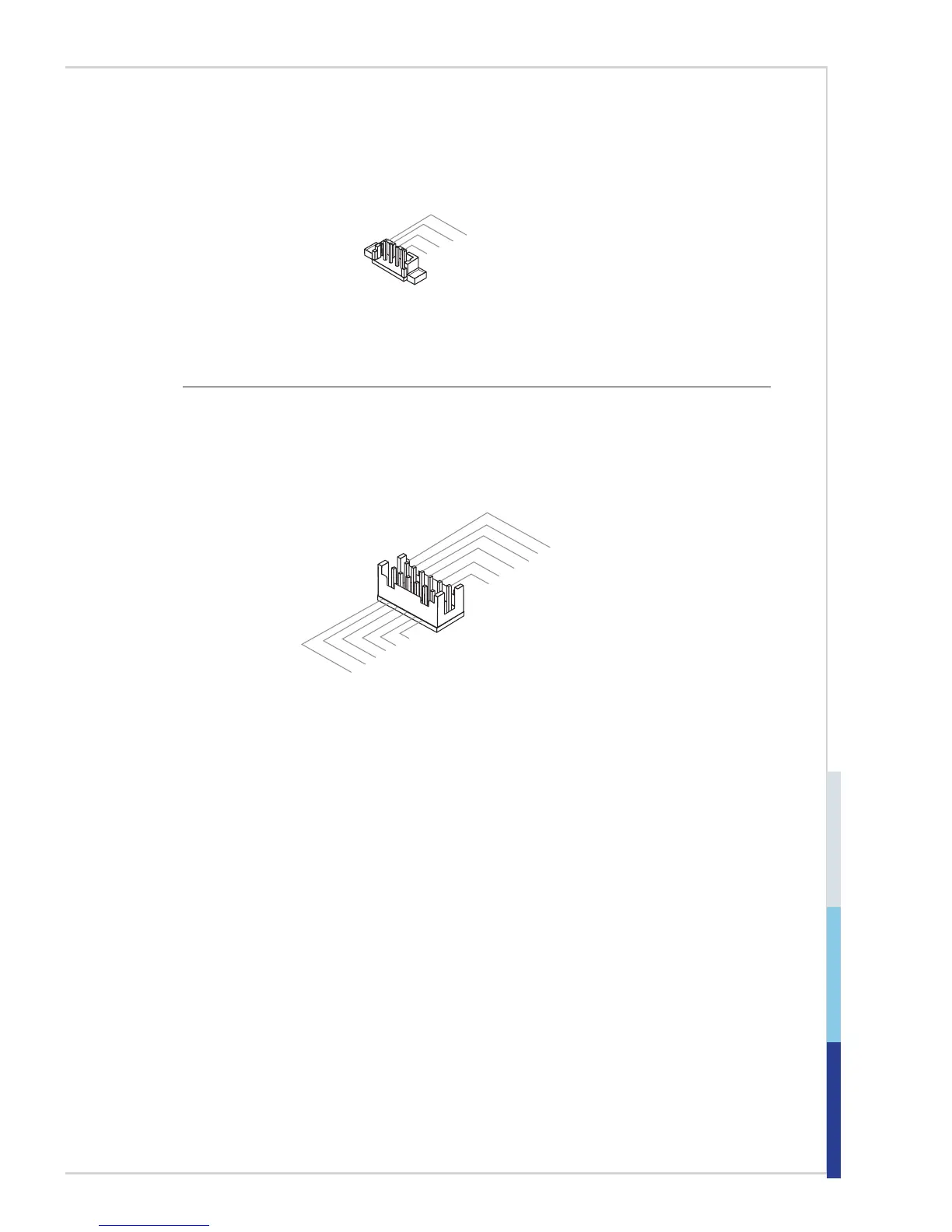

Audio Amplier Pinheader: JAMP1
The JAMP1 is used to connect audio ampliers to enhance audio performance.
1.AMP_L-
2.AMP_L+
3.AMP_R-
4.AMP_R+
Front Audio Connector: JAUD1
This connector allows you to connect the front panel audio and is compliant with
Intel Front Panel I/O Connectivity Design Guide.
1.LINE1_1R_J
8.LINE1_JD
10.GND
3.LINE1_1L_J
6.MIC1_JD
5.LINE_FOUTR_J
4.MIC1_L_J
7.LINE_FOUTL_J
2.MIC1_R_J
12.GND
9.FRONT_JD
11.GND
