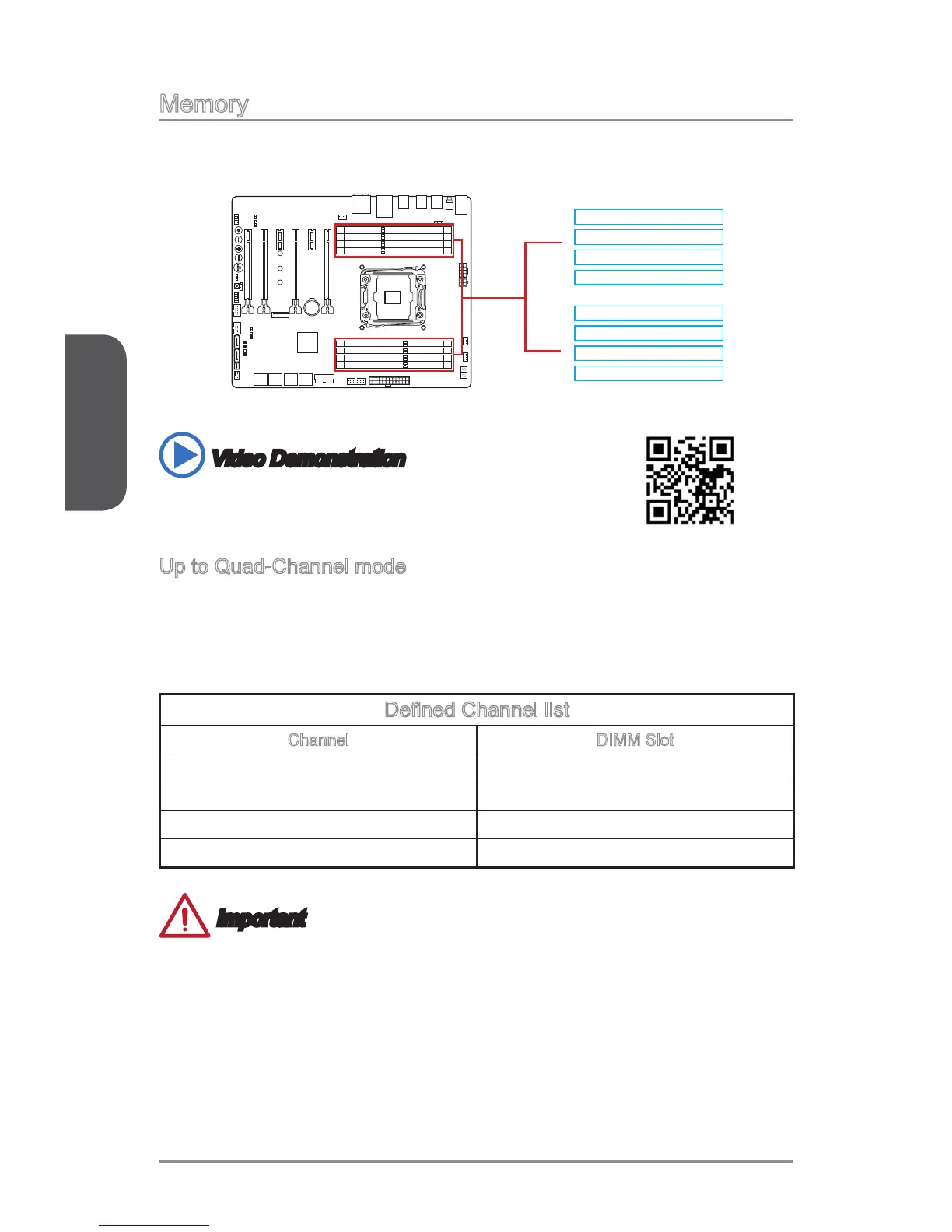

Memory
These DIMM slots are used for installing memory modules.
DIMM1
DIMM2
DIMM4
DIMM8
DIMM7
DIMM6
DIMM5
Video Demonstration
Watch the video to learn how to install memory.
Up to Quad-Channel mode
This mainboard supports up to four memory channels. Two DIMM slots provide a
single channel. The memory modules can transmit and receive data with four data bus
channels simultaneously to enhance system performance. Please refer the following
tables for more details.
Channel DIMM Slot
Channel A DIMM1, DIMM2
Channel B
Channel C DIMM5, DIMM6
Channel D DIMM7, DIMM8
Important
standard is not backward compatible. Always install DDR4 memory modules in
DDR4 DIMM slots.
Due to chipset resource usage, the system will only detect up to 127+ GB of
memory (not full 128 GB) when all DIMM slots have 16GB memory modules
installed.
