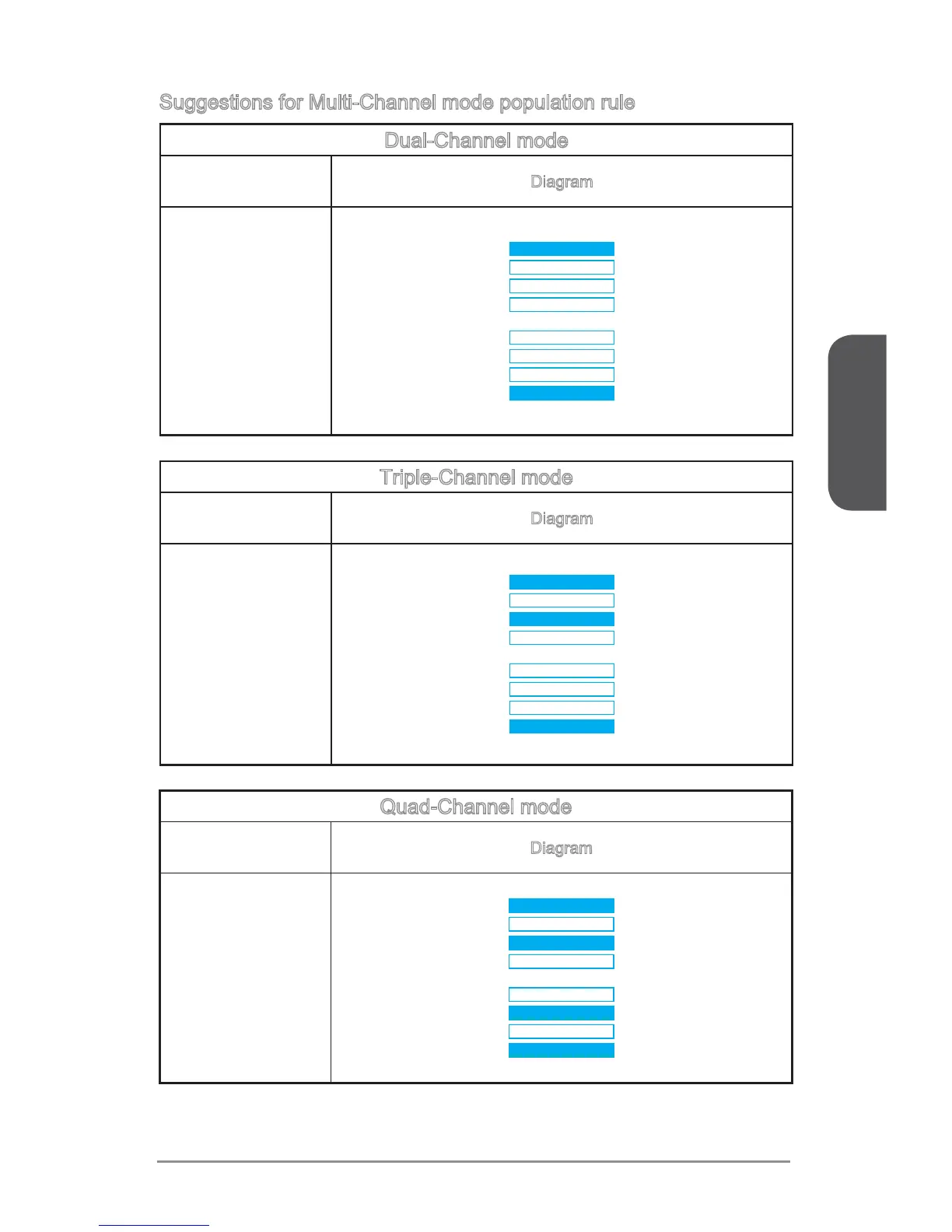

Suggestions for Multi-Channel mode population rule
Dual-Channel mode
Installed DIMMs
(2 memory modules)
Diagram
DIMM1, DIMM5
DIMM1
DIMM2

DIMM4
DIMM8
DIMM7
DIMM6
DIMM5
Triple-Channel mode
Installed DIMMs

Diagram

DIMM1
DIMM2

DIMM4
DIMM8
DIMM7
DIMM6
DIMM5
Quad-Channel mode
Installed DIMMs
(4 memory modules)
Diagram

DIMM5, DIMM7
DIMM1
DIMM2

DIMM4
DIMM8
DIMM7
DIMM6
DIMM5
