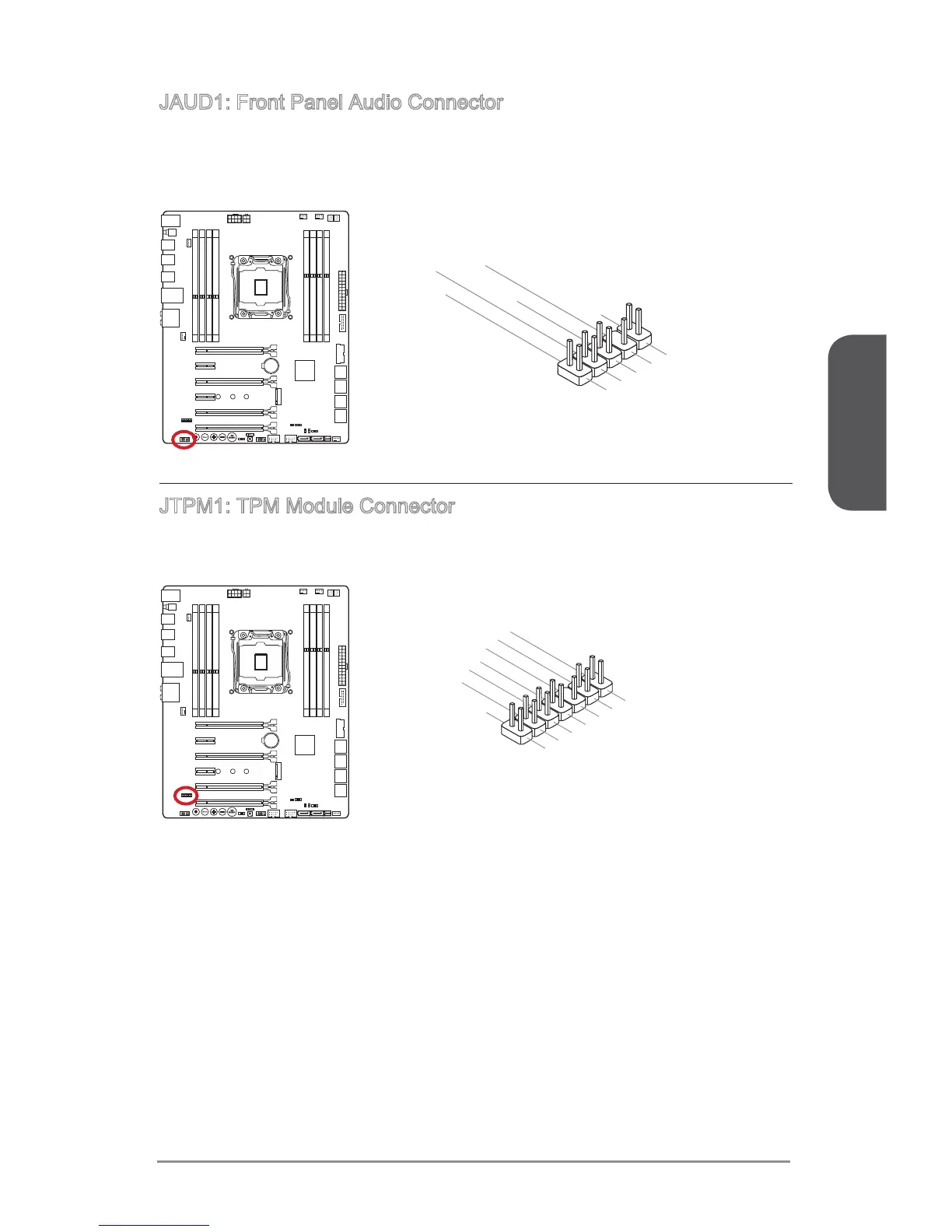

JAUD1: Front Panel Audio Connector

This connector allows you to connect the front audio panel located on your computer

case. This connector is compliant with the Intel

Front Panel I/O Connectivity Design

Guide.

1.MIC L

3.MIC R

10.Head

Phone Detection

5.Head Phone

7.SENSE_SEND

9.Head Phone

8.No Pin

6.MIC Detection

4.NC

.Ground

JTPM1: TPM Module Connector

This connector connects to a TPM (Trusted Platform Module). Please refer to the TPM

security platform manual for more details and usages.

10.No Pin

14.Ground

8.5V Power

12.Ground

6.Serial IRQ

4.3.3V Power

2.3V Standby power

1.LPC Clock

3.LPC Reset

5.LPC address & data pin0

7.LPC address & data pin1

9.LPC address & data pin2

11.LPC address & data pin3

13.LPC Frame
