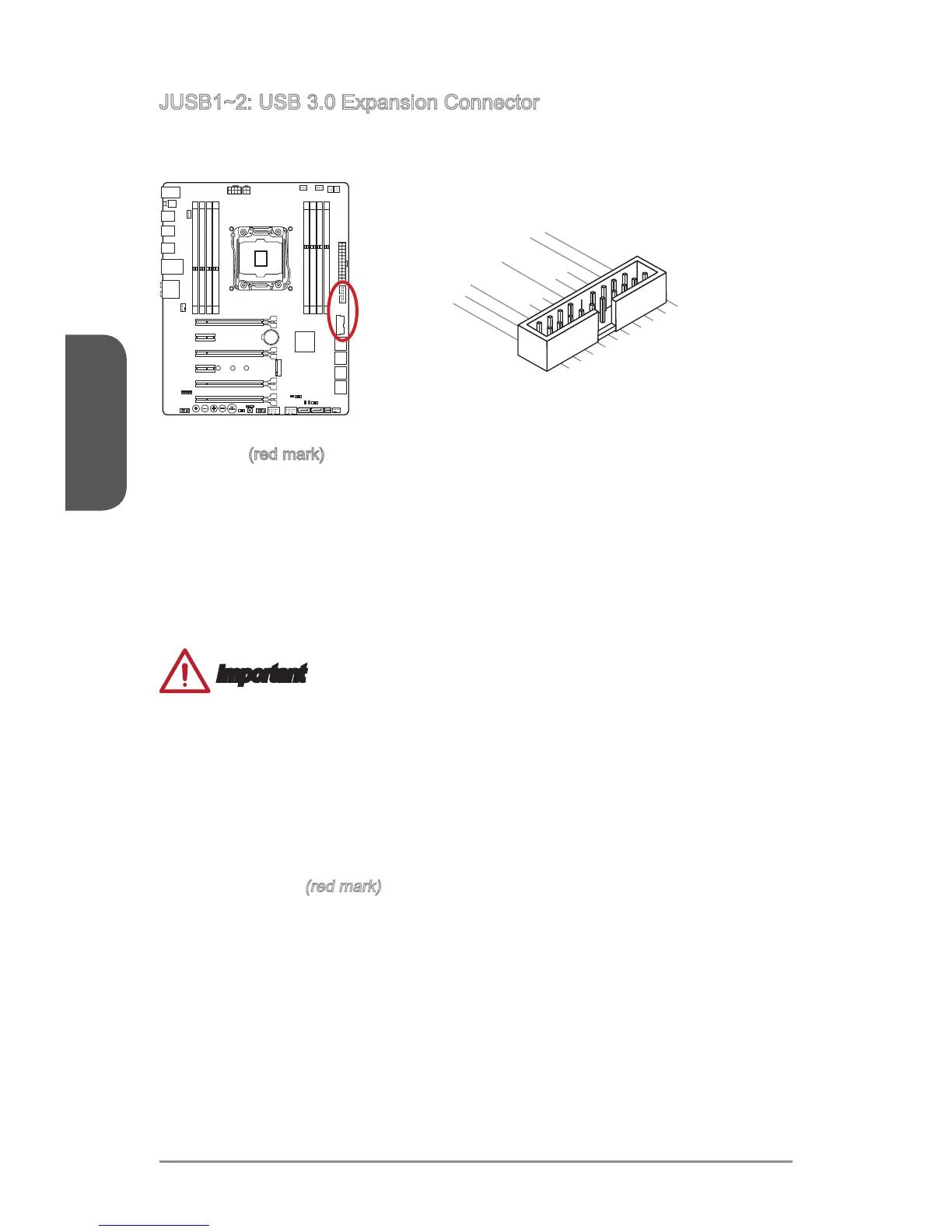

Chapter 1
1-26
Getting Started


transfer rates up to 5Gbits/s (SuperSpeed).
5.USB3_TX_C_DN
4.Ground
3.USB3_RX_DP
2.USB3_RX_DN
1.Power
10.Ground
9. +USB2.0
8. -USB2.0
7.Ground
6.USB3_TX_C_DP
20.No Pin
19.Power
18.USB3_RX_DN
17.USB3_RX_DP
16.Ground
15.USB3_TX_C_DN
14.USB3_TX_C_DP
13.Ground
12.USB2.0 -
11. +
USB2.0
The JUSB1 (red mark) connector supports MSI’s new Super-Charger technology
which provides quicker USB charging of your smartphone or other USB-powered
devices. To enable this feature, please install the MSI Super-Charger application
on your computer. When the Super-Charger application is turned on, the JUSB1
connector will convert data channels to extra power channels to quickly charge your
connected device. Please note that when the Super-Charger application is turned on,


󰘯

Important

Note that the VCC and GND pins must be connected correctly to avoid possible
damage.




Please only connect one device per USB port to ensure stable charging.

Super-Charger Technology is only available on select MSI motherboard models.
Please refer to the MSI website to check if your motherboard has Super-Charger
technology.

For iPad, JUSB1 (red mark)

We recommend that don’t disconnect the device when you charge it in S1 state.
