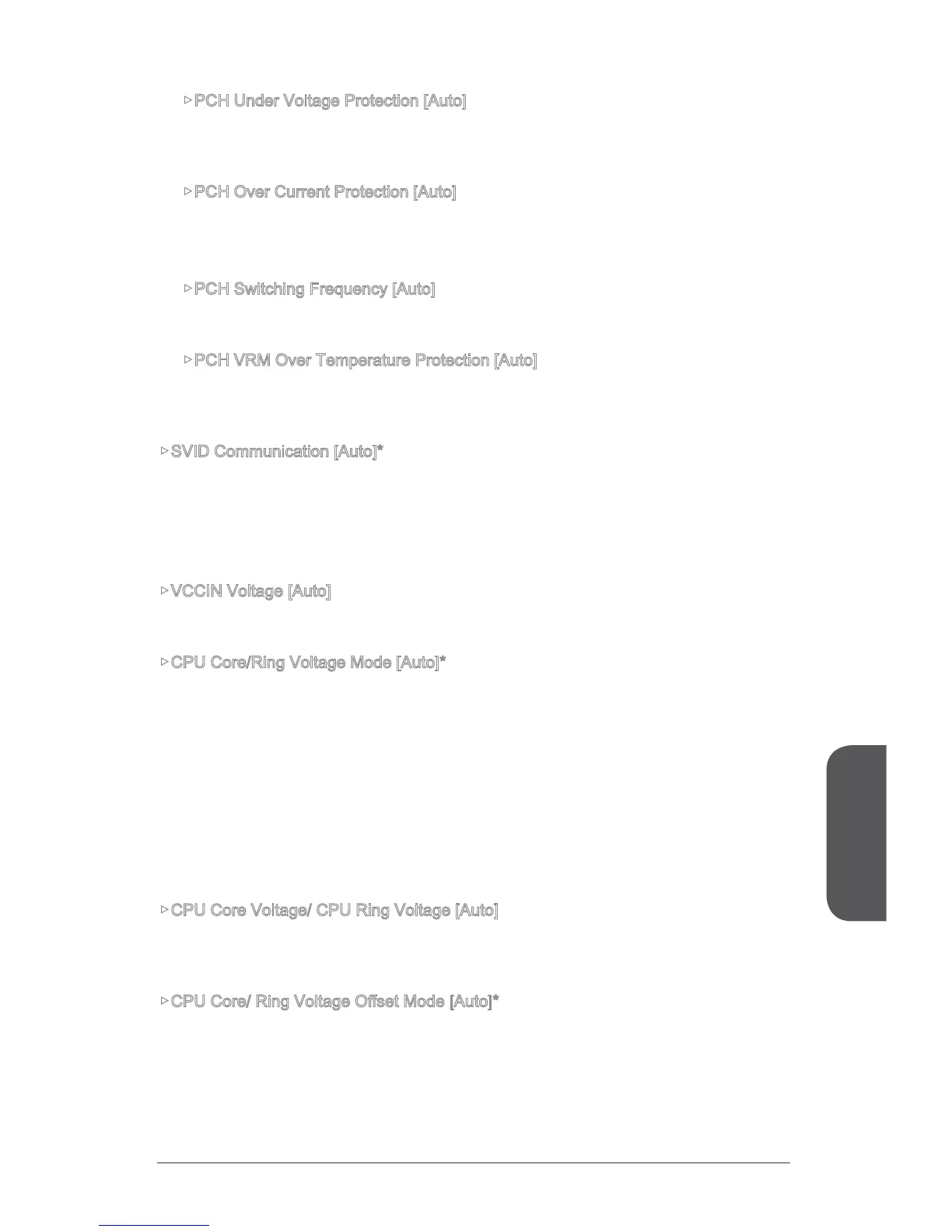

BIOS Setup
PCH Under Voltage Protection [Auto]
Sets the voltage limit for PCH under-voltage protection. If set to "Auto", BIOS will
may damage the system.
PCH Over Current Protection [Auto]
Sets the current limit for PCH over-current protection.
[Enhanced] Extends the limitation of PCH over-current protection.
PCH Switching Frequency [Auto]
PCH VRM Over Temperature Protection [Auto]
Sets the temperature limit on PCH VRM for over-temperature protection. The PCH
SVID Communication [Auto]*
[Enabled] PWM phase will be changed dynamically according to the CPU SVID
VCCIN Voltage [Auto]
Sets the CPU input voltage. The CPU input voltage is the CPU power source that is
shared with components of the CPU.
CPU Core/Ring Voltage Mode [Auto]*
Selects the control mode for CPU Core/ Ring voltages.
performance.
[Override Mode] Allows you to set the voltage manually.
CPU Core Voltage/ CPU Ring Voltage [Auto]
Sets the CPU Core/ Ring voltages. If set to “Auto”, BIOS will set these voltages
automatically or you can set it manually. This item appears when “CPU Core/Ring
Voltage Mode” sets to [Auto]/ [Adaptive Mode]/ [Override Mode].
