MTD 75 series User Manual

Starters
77

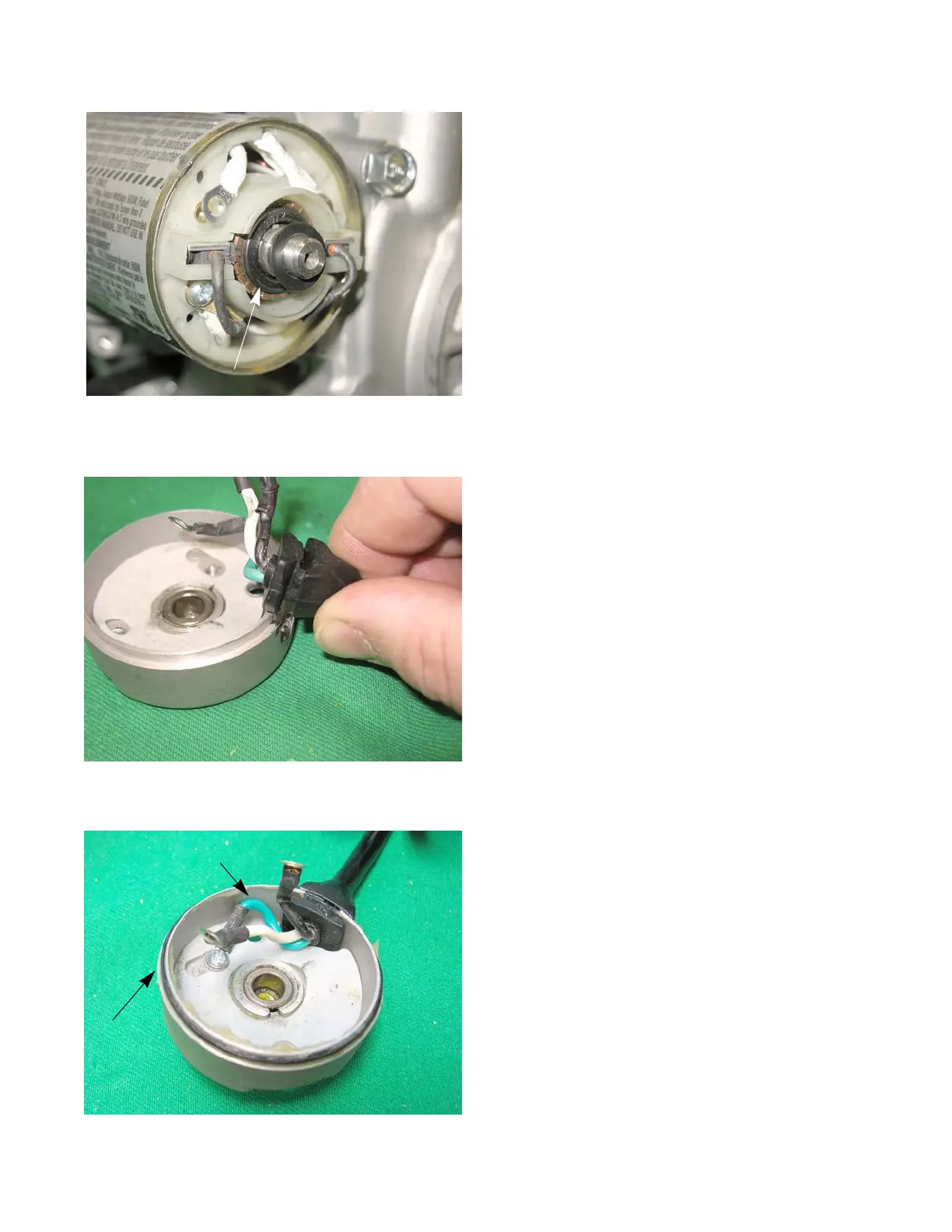

14. Install the thrust washer. See Figure 6.19.
15. Press the harness’s grommet into the end cap. See
Figure 6.20.
16. Attach the green wire to the end cap.
17. Install a new O-ring on the end cap. See Figure 6.21.
NOTE: Applying grease to the O-ring groove will help hold
the O-ring in place during assembly.
Figure 6.19
Thrust washer
Figure 6.20
Figure 6.21
O-ring
Green wire
