Chapter 10: Crankshaft, piston and Connecting Rod
95

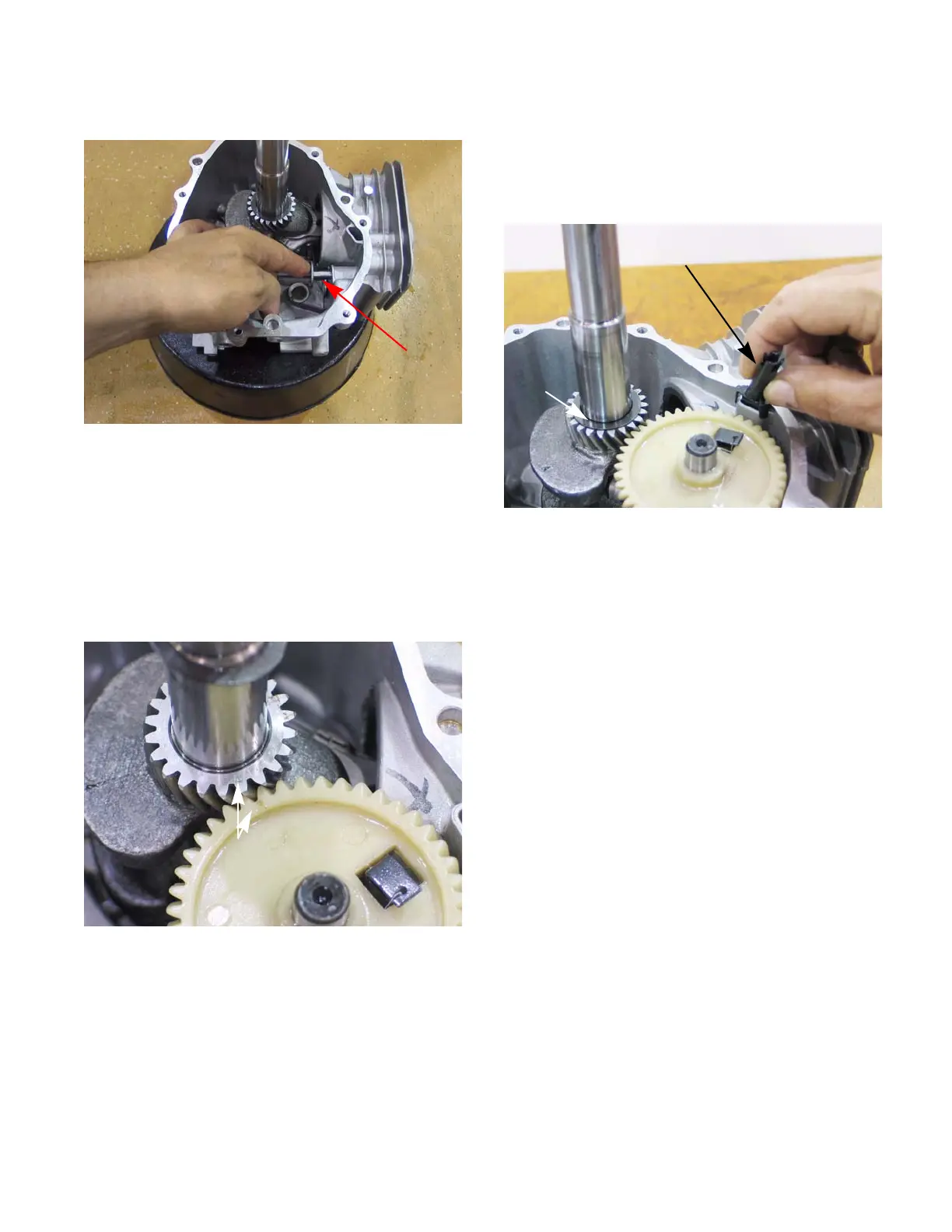

5. Install the valve tappets. See Figure 10.26.
6. Install the cam shaft by:
6a. Pre-lube the cam shaft with clean 10W-30
motor oil or engine assembly lube.
6b. Rotate the crank shaft until the timing mark
points to the tappets.
6c. Insert the cam shaft while aligning the timing
marks. See Figure 10.27.
Figure 10.26
Tappet
Figure 10.27
Timing marks
7. If removed, install the governor arm by following
the steps described in Chapter 4: Fuel systems
and Governor.
8. If removed, install the oil return deflector.
See Figure 10.28.
9. Place the thrust washer on the crank shaft.
See Figure 10.28.
10. Install the sump by:
10a. If removed, install the governor gear and
cup by following the steps described in
Chapter 4: Fuel system and Governor.
10b. Place a new gasket on the sump, let the
alignment dowels hold it in place.
10c. Rotate the governor arm so that it is point-
ing straight up.
Figure 10.28
oil return deflector
Thrust
washer
